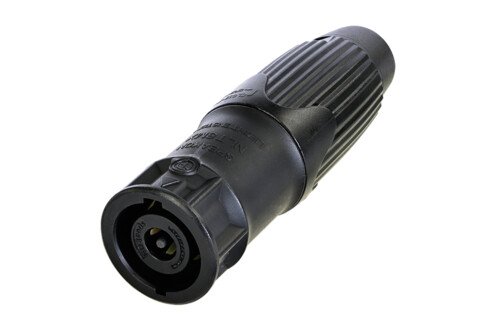

Neutrik SpeakON STX Male Black 8 Pole

Neutrik SpeakON STX Male Black 8 Pole
More Info

The Neutrik NLT8MXX-BAG is an 8-pole speakON cable connector (male) from the heavy-duty speakON STXX Series, designed for demanding amplifier-to-loudspeaker connections in professional touring and live sound. It has an extremely robust all-metal housing of black KTL-coated zinc die-cast, a glass-reinforced, UL 94 V-0 polyamide insert and a chuck-type strain relief, and it mates with the complete speakON 8-pole range using Neutrik's precise Quick Lock system. Each contact is rated for 30 A rms continuous (to IEC 61984) at 250 V AC, with silver-plated copper-alloy contacts, and the connector is IEC 61984 certified, so it is accepted as a component of equipment built to IEC 62368-1. Eight poles let a single cable carry up to four separate amplifier channels, which is typical for bi-amped or multi-way loudspeaker systems. Wires are terminated on 1/4-inch flat tabs, accepting conductors from 1.5 to 6 mm² (up to 10 AWG) in a cable of 8 to 20 mm outside diameter, with cable retention of at least 220 N and a life of more than 5,000 mating cycles. It is rated IP50 when mated and for -30 to +80 °C. Note that speakON must not be used for mains power.

R925.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Poles: 8
  • Rated current per contact: 30 A rms continuous (IEC 61984)
  • Rated voltage: 250 V AC
  • Dielectric strength: 1.5 kV AC

Mechanical

  • Gender: Male cable connector
  • Cable O.D.: 8 - 20 mm
  • Wire size: 1.5 - 6 mm² (10 AWG)
  • Termination: 1/4" flat tabs
  • Locking: Quick Lock
  • Lifetime: > 5,000 mating cycles

Material & environment

  • Shell: Zinc die-cast, black KTL coating
  • Contacts: Copper alloy, silver-plated
  • Protection: IP50 (mated)
  • Temperature: -30 to +80 °C
