Neutrik XLR 3 Pin Female Cable ~Old St

Neutrik XLR 3 Pin Female Cable ~Old St
More Info

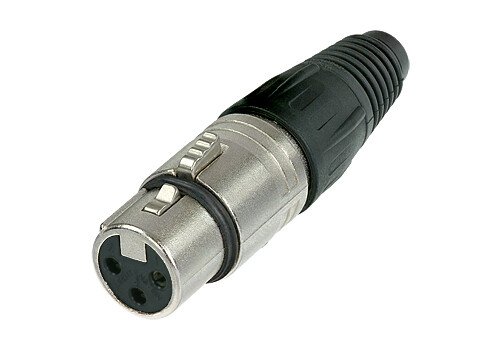

The Neutrik NC3FX is a 3-pole female XLR cable connector from Neutrik's classic X series, the "industry standard" XLR connector with a nickel-plated zinc diecast shell, silver-plated contacts and a black boot. It assembles from only four parts with no screws, using a chuck-type strain relief that clamps cables from 3.5 to 8 mm diameter. It is used as the socket end of microphone, balanced line and 3-pin DMX cables by sound and lighting crews, studios, hire companies and installers. Neutrik rates it at 16 A per contact, contact resistance of 3 mΩ or less, over 10 GΩ insulation resistance, 1.5 kV DC dielectric strength, IP40, UL94 V-0 and more than 1,000 mating cycles, from -30 to +80 °C. Neutrik has phased the X series out in favour of the NC3FXX; this listing is the older style (stock while it lasts). Supplied as a single connector; cable not included.

R135.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Poles: 3
  • Rated current per contact: 16 A
  • Contact resistance: ≤ 3 mΩ
  • Insulation resistance: > 10 GΩ
  • Dielectric strength: 1.5 kV DC

Mechanical

  • Gender: Female cable connector
  • Cable OD: 3.5 - 8.0 mm
  • Wire size: max 2.5 mm² / 14 AWG, solder
  • Contact plating: 2 µm Ag over 2 µm Ni
  • Shell: Zinc diecast, nickel plated
  • Lifetime: > 1000 mating cycles

Environmental

  • Protection: IP40
  • Flammability: UL94 V-0
  • Temperature range: -30 to +80 °C
  • Status: Phase-out; successor NC3FXX
