Neutrik XLR 3 Pin Male Cable

Neutrik XLR 3 Pin Male Cable
More Info

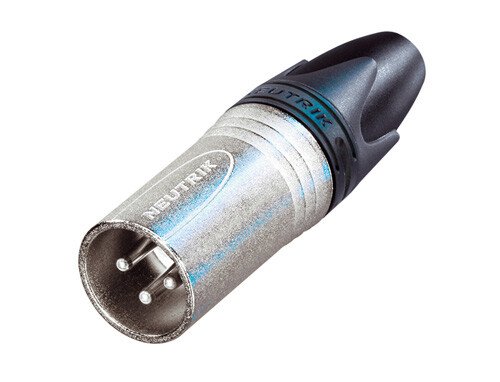

The Neutrik NC3MXX is a 3-pole male XLR cable connector from Neutrik's XX series, the successor to the long-standing X series, with a nickel-plated zinc diecast shell, silver-plated contacts and a black polyurethane boot. It is the plug end for microphone leads, balanced line cables and 3-pin DMX lighting cables, and is a staple for sound engineers, hire companies, studios and installers who build their own leads. The XX series adds an improved chuck-type strain relief with higher pull-out force, a locking recess without a window for a sturdier housing, and a protected internal thread. It takes cables of 3.5 to 8 mm diameter and wire up to 2.5 mm² (14 AWG), soldered. Neutrik rates it at 16 A per contact, over 10 GΩ insulation resistance, 1.5 kV DC dielectric strength, IP40, UL94 V-0, more than 1,000 mating cycles and -30 to +80 °C. Supplied as a single connector; cable not included.

R120.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Electrical

  • Poles: 3
  • Rated current per contact: 16 A
  • Contact resistance: ≤ 3 mΩ
  • Insulation resistance: > 10 GΩ
  • Dielectric strength: 1.5 kV DC

Mechanical

  • Gender: Male cable connector
  • Cable OD: 3.5 - 8.0 mm
  • Wire size: max 2.5 mm² / 14 AWG, solder
  • Contact plating: 2 µm Ag
  • Shell: Zinc diecast, nickel plated
  • Lifetime: > 1000 mating cycles

Environmental

  • Protection: IP40
  • Flammability: UL94 V-0
  • Standard: IEC 61076-2-103
  • Temperature range: -30 to +80 °C
