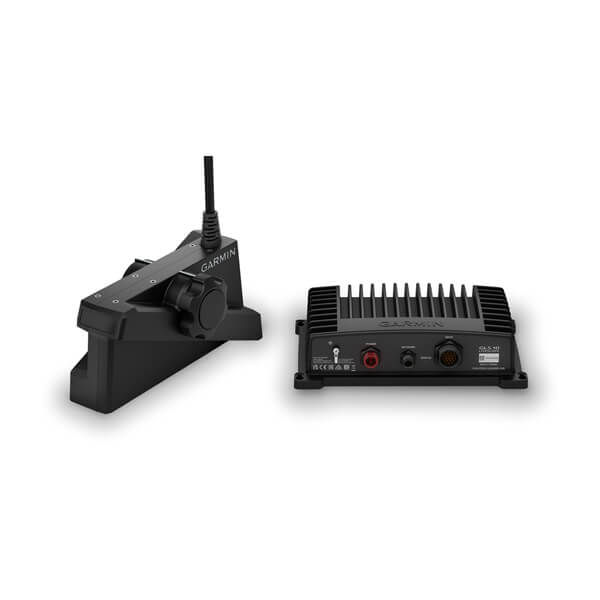

Garmin Panoptix LiveScope XR System w/LVS62XR and GLS10
The Garmin Panoptix LiveScope XR System pairs the LVS62XR transducer with the GLS 10 sonar 'black box' module to deliver Garmin's live-scanning sonar -- real-time, video-like sonar imagery of fish and structure moving in real time beneath, ahead of, or around the boat, rather than the scrolling historical view a traditional fishfinder shows. The 'XR' (Extended Range) transducer variant in this system extends usable depth range over Garmin's standard LiveScope transducers, aimed at anglers who fish deeper water and still want live-scan clarity at those depths.
In practice, this means an angler can watch bait, individual fish, and their own lure or jig move in real time on screen in Forward, Down, or Perspective viewing modes, which is genuinely different from interpreting a traditional sonar return after the boat has already passed over the fish. Maximum depth is rated to 500 feet (152m) in freshwater and 350 feet (106m) in saltwater for Down and Forward modes, with a 500W transmit power output across a 282-522kHz frequency range and a 20-135 deg beam width. The GLS 10 sonar module (the processing 'black box' that connects the transducer to a compatible Garmin chartplotter) measures roughly 24.5 x 14.9 x 6.5cm and weighs 2.0kg; the LVS62XR transducer itself weighs 1.78kg with its 6-metre cable attached. The whole system runs on 10-32V power, drawing a typical 21W (58W maximum), and is IPX7 water-resistant. It requires a compatible Garmin chartplotter to display the live sonar feed -- this listing is the transducer-plus-processor system only, not a standalone display.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Sonar Performance
- Max depth (freshwater): 500 ft (152 m)
- Max depth (saltwater): 350 ft (106 m)
- Transmit power: 500 W
- Frequency range: 282-522 kHz
- Beam width: 20-135 deg
Modes
- Viewing modes: Forward, Down, Perspective
- Live imaging: Real-time scanning sonar (not historical scroll)
Physical & Power
- GLS 10 module: ~24.5 x 14.9 x 6.5 cm, 2.0 kg
- LVS62XR transducer: 1.78 kg with 6m cable
- Power input: 10-32V, 21W typical / 58W max
- Water rating: IPX7
- Display required: Compatible Garmin chartplotter (sold separately)
