Plus Audio Easytour single 10" line array

Plus Audio Easytour single 10" line array
More Info

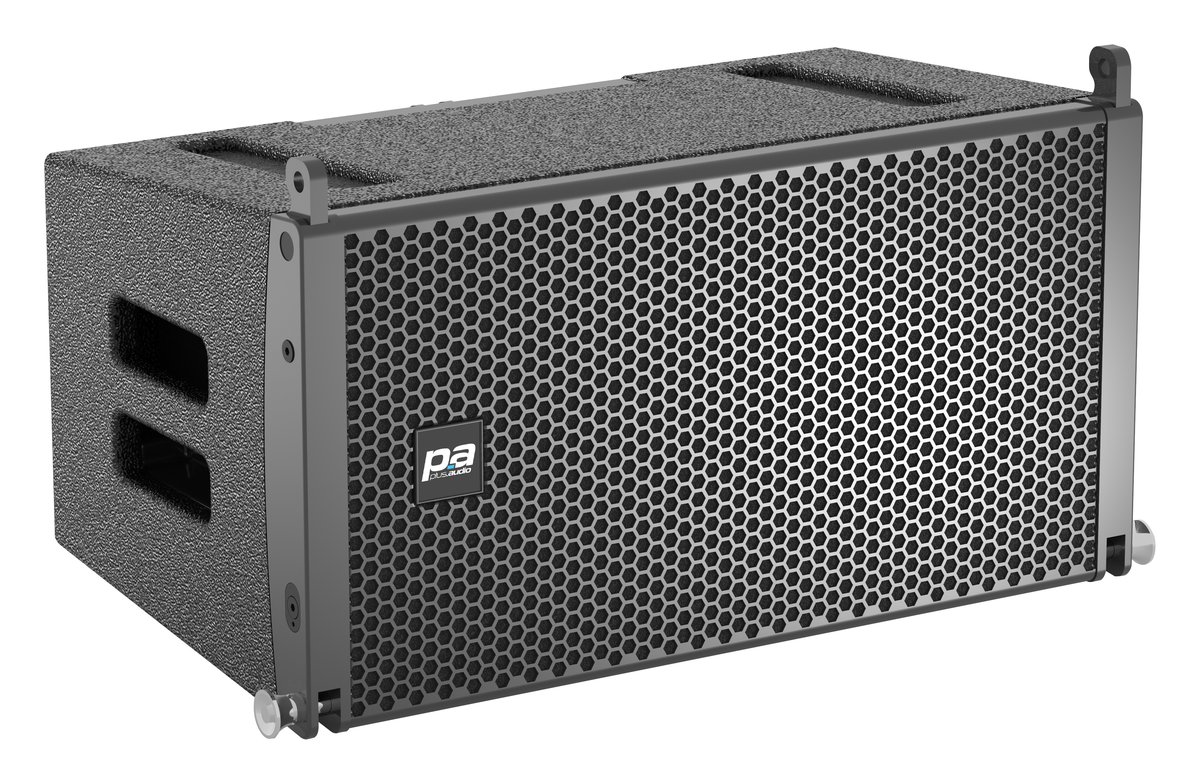

The Plus Audio ET110L Easytour is a single 10-inch passive line array mid-high cabinet for touring companies, rental houses, churches and event venues that need a compact, scalable line array. Each cabinet combines one 10-inch neodymium low-mid driver with a 2.5-inch voice coil and a 3-inch voice coil neodymium compression driver with a 1.4-inch exit, and delivers a frequency response of 80 Hz - 20 kHz (-10 dB) with a maximum SPL of 138 dB. Sensitivity is 112 dB (HF) and 103 dB (LF), both sections are 16 ohm, and power handling is 90 W HF and 400 W LF (AES), so it is run bi-amped from an external processor and amplifiers. Nominal dispersion is 90 degrees horizontal by 10 degrees vertical, and arrays can be pole-mounted, ground-stacked or flown with the integrated rigging. Connections are two Neutrik NL4MP sockets (LF 1+/1-, HF 2+/2-). The enclosure is multilayer birch plywood (15 and 18 mm) in black polyurethane paint with a steel grille and acoustic foam. It measures 308 x 527 x 342 mm (H x W x D) and weighs 18 kg. It pairs with Plus Audio's ET-series subwoofers.

R31,050.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Acoustic

  • Drivers: 1x 10-inch LF (2.5-inch VC, neodymium), 1x 3-inch VC HF (1.4-inch exit)
  • Frequency response: 80 Hz - 20 kHz (-10 dB)
  • Max SPL: 138 dB
  • Sensitivity (1W/1m): HF 112 dB, LF 103 dB
  • Dispersion: 90 x 10 degrees

Electrical

  • Impedance: HF 16 ohm, LF 16 ohm
  • Power (AES): HF 90 W, LF 400 W
  • Connectors: 2x Neutrik NL4MP

Physical

  • Dimensions (HxWxD): 308 x 527 x 342 mm
  • Weight: 18 kg
  • Enclosure: Multilayer birch plywood, black polyurethane
