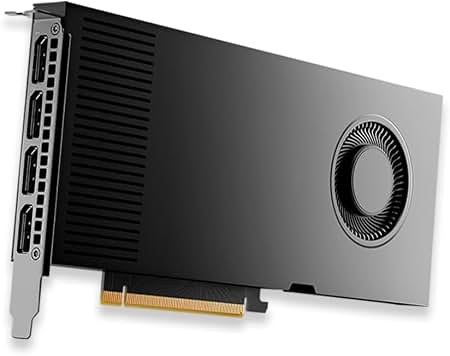

PNY Quadro A4000 Ada generation- 4nm TSMC ad104 Ada Lovelace - single slot design - for professional 3D applications , with hardware OpenGL 4.6+ directX 12+ shader model 6.5+ vulcan 1.2 , Pci-E 4.0 16x , core/memory : 1565/20000mhz , 160bit 20Gb GDDR6 with ECC ( transfer rate : 320Gb/sec ) , 6144 CUDA cores + 192 Tensor core + 48 RT cores , 6mb L1 + 48mb L2 cache , 125 GPixel/sec , 301 GTexels/Sec , 19230 GFLoPS , 192x TMUs , RoPs: 80 , 4x DP , no power connector - 3 years warranty

PNY Quadro A4000 Ada generation- 4nm TSMC ad104 Ada Lovelace - single slot design - for professional 3D applications , with hardware OpenGL 4.6+ directX 12+ shader model 6.5+ vulcan 1.2 , Pci-E 4.0 16x , core/memory : 1565/20000mhz , 160bit 20Gb GDDR6 with ECC ( transfer rate : 320Gb/sec ) , 6144 CUDA cores + 192 Tensor core + 48 RT cores , 6mb L1 + 48mb L2 cache , 125 GPixel/sec , 301 GTexels/Sec , 19230 GFLoPS , 192x TMUs , RoPs: 80 , 4x DP , no power connector - 3 years warranty
More Info

The catalog name "Quadro A4000 Ada generation" is a naming error — NVIDIA retired the Quadro brand before the Ada Lovelace generation; the real product is the NVIDIA RTX 4000 Ada Generation, and NVIDIA markets it as "the most powerful single-slot GPU for professionals." Built on the Ada Lovelace architecture (AD104 die), it combines 6,144 CUDA cores, 192 fourth-gen Tensor cores and 48 third-gen RT cores with 20GB of ECC GDDR6 on a 160-bit bus (360GB/s bandwidth). Aimed at designers and engineers who need serious single-precision and AI/rendering performance in a compact single-slot card — unusually, it needs no external power connector at all, drawing its full 130W board power through the PCIe slot alone. Outputs via 4x DisplayPort 1.4a up to 8K, PCIe 4.0 x16, active cooling.

R35,999.00

Online price incl. VAT

Availability: Stock Pending

Graphics Processor

  • Architecture: NVIDIA Ada Lovelace
  • CUDA Cores: 6,144
  • Tensor Cores: 192 (4th Gen)
  • RT Cores: 48 (3rd Gen)

Memory

  • Memory Size: 20GB
  • Memory Type: GDDR6 with ECC
  • Memory Speed: 18 Gbps effective (360 GB/s bandwidth)
  • Bus Width: 160-bit

Display Outputs

  • Ports: 4x DisplayPort 1.4a
  • Max Resolution: 2x 7680x4320 @ 60Hz, or 4x 4096x2160 @ 120Hz

Cooling

  • Cooling System: Active

Physical

  • Dimensions: 241.3 x 111.8 mm (9.5" H x 4.4" L)
  • Slot Width: Single slot

Power Requirements

  • TDP: 130W total board power
  • Power Connector: None required — powered entirely via PCIe slot
  • System Interface: PCIe 4.0 x16
