PNY Quadro A4000 Sff Ada generation- 4nm TSMC ad104 Ada Lovelace - standard + Low-profile dual bracket , 2 slots required - for professional 3D applications , with hardware OpenGL 4.6+ directX 12+ shader model 6.5+ vulcan 1.2 , Pci-E 4.0 16x , core/memory : 1565/20000mhz , 160bit 20Gb GDDR6 with ECC ( transfer rate : 320Gb/sec ) , 6144 CUDA cores + 192 Tensor core + 48 RT cores , 6mb L1 + 48mb L2 cache , 125 GPixel/sec , 301 GTexels/Sec , 19230 GFLoPS , 192x TMUs , RoPs: 80 , 4x miniDP , with miniDP to DP adapters , no power connector - 3 years warranty

PNY Quadro A4000 Sff Ada generation- 4nm TSMC ad104 Ada Lovelace - standard + Low-profile dual bracket , 2 slots required - for professional 3D applications , with hardware OpenGL 4.6+ directX 12+ shader model 6.5+ vulcan 1.2 , Pci-E 4.0 16x , core/memory : 1565/20000mhz , 160bit 20Gb GDDR6 with ECC ( transfer rate : 320Gb/sec ) , 6144 CUDA cores + 192 Tensor core + 48 RT cores , 6mb L1 + 48mb L2 cache , 125 GPixel/sec , 301 GTexels/Sec , 19230 GFLoPS , 192x TMUs , RoPs: 80 , 4x miniDP , with miniDP to DP adapters , no power connector - 3 years warranty
More Info

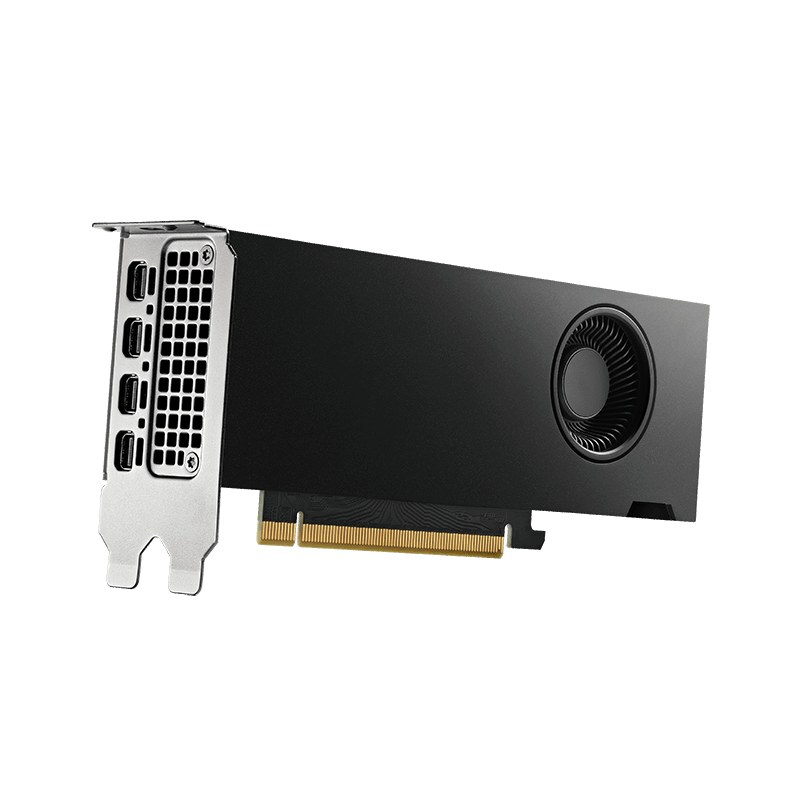

The PNY NVIDIA RTX 4000 SFF Ada Generation is a professional workstation graphics card built on the Ada Lovelace architecture (4nm, AD104 GPU), designed for CAD, 3D content creation and AI/ML workloads in space-constrained small-form-factor systems. It ships as a dual-slot low-profile card with a swappable full-height/low-profile bracket, drawing just 70W with no auxiliary power connector required. With 20GB of ECC GDDR6 memory across a 160-bit bus, 6,144 CUDA cores, 192 Gen 4 Tensor Cores and 48 Gen 3 RT Cores, it delivers strong professional 3D and AI acceleration for engineers and creators who need serious GPU performance inside compact desktops or SFF workstations, backed by a 3-year limited warranty from PNY.

R35,999.00

Online price incl. VAT

Availability: Stock Pending

Graphics Processor

  • Architecture: NVIDIA Ada Lovelace (4nm, AD104 GPU)
  • CUDA Cores: 6,144
  • Tensor Cores: 192 (Gen 4)
  • RT Cores: 48 (Gen 3)
  • FP32 Performance: 19.2 TFLOPS

Memory

  • Memory Size: 20GB GDDR6 with ECC
  • Bus Width: 160-bit
  • Memory Bandwidth: 320 GB/s

Display Outputs

  • Ports: 4x Mini DisplayPort 1.4a (mDP-to-DP adapters included)
  • VR Ready: Yes

Cooling

  • Cooling System: Active dual-slot fansink

Physical

  • Dimensions: 167.6 x 68.6 mm (6.6" x 2.7"), standard + low-profile dual bracket
  • Slot Width: Dual-slot

Power Requirements

  • Max Power Consumption: 70W
  • Power Connector: None required (bus-powered)
  • PCIe Interface: PCIe 4.0 x16

Warranty

  • Warranty Period: 3 years (PNY limited warranty)
