PNY Quadro A5500 - GA102 Ampere ( support 100GB/s RTX NVLink HB , 2 slots required ) - for professional 3D applications , with hardware OpenGL 4.6+ directX 12+ shader model 6.5+ vulcan 1.2 , Pci-E 4.0 16x , core/memory : 1695/16000mhz , 384bit 24Gb GDDR6 with ECC ( transfer rate : 768Gb/sec ) , 10240 CUDA cores + 320 Tensor core + 80 RT cores , 10mb L1 + 6mb L2 cache , 162.7 GPixel/sec , 542 GTexels/Sec , 34710 GFLoPS , 320x TMUs , RoPs: 96 , 4x DP , with DP to DVi adapter , require 1x8pin power connector - 3 years warranty

PNY Quadro A5500 - GA102 Ampere ( support 100GB/s RTX NVLink HB , 2 slots required ) - for professional 3D applications , with hardware OpenGL 4.6+ directX 12+ shader model 6.5+ vulcan 1.2 , Pci-E 4.0 16x , core/memory : 1695/16000mhz , 384bit 24Gb GDDR6 with ECC ( transfer rate : 768Gb/sec ) , 10240 CUDA cores + 320 Tensor core + 80 RT cores , 10mb L1 + 6mb L2 cache , 162.7 GPixel/sec , 542 GTexels/Sec , 34710 GFLoPS , 320x TMUs , RoPs: 96 , 4x DP , with DP to DVi adapter , require 1x8pin power connector - 3 years warranty
More Info

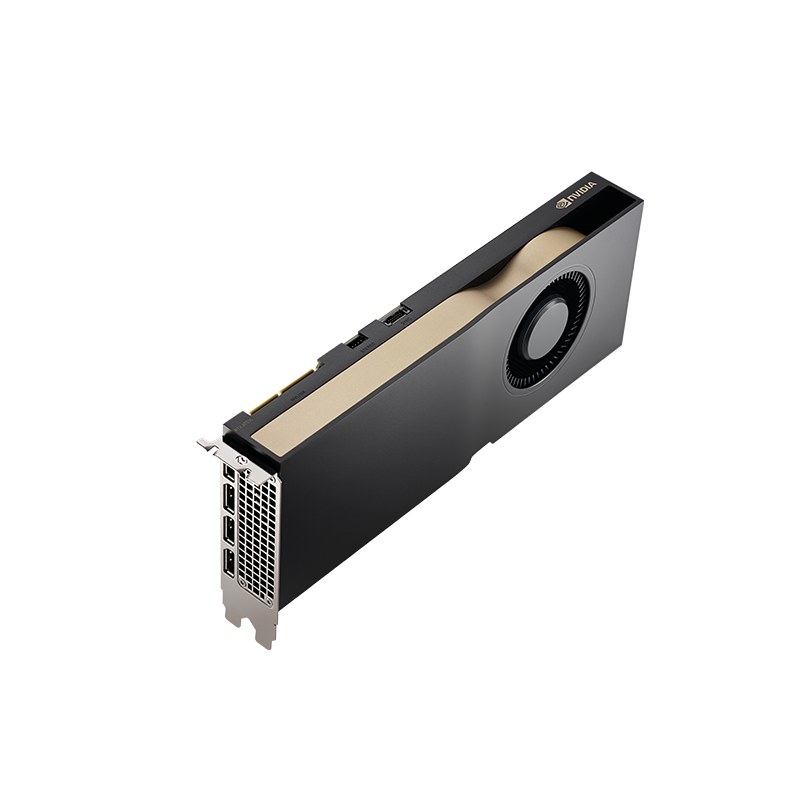

The PNY NVIDIA RTX A5500 is a professional workstation graphics card built on NVIDIA's Ampere (GA102) architecture, aimed at 3D design, engineering, and visualisation work rather than gaming. It pairs 10,240 CUDA cores, 320 Tensor cores, and 80 RT cores with 24GB of ECC GDDR6 memory on a 384-bit bus, and supports 100GB/s RTX NVLink for pairing two cards in high-bandwidth multi-GPU workstations. A dual-slot active cooler keeps it self-contained, and it ships with four DisplayPort 1.4 outputs (plus a DP-to-DVI adapter in the box) for demanding multi-monitor setups. Runs on PCIe 4.0 x16 with full OpenGL 4.6, DirectX 12, Shader Model 6.5, and Vulkan 1.2 support, backed by PNY's 3-year warranty.

R109,999.00

Online price incl. VAT

Availability: Stock Pending

Graphics Processor

  • Architecture: NVIDIA Ampere (GA102)
  • CUDA Cores: 10,240
  • Tensor Cores: 320
  • RT Cores: 80
  • Core / Memory Clock: 1695 MHz core / 16000 MHz memory
  • TMUs / ROPs: 320 / 96

Memory

  • Memory Size: 24GB GDDR6 with ECC
  • Bus Width: 384-bit
  • Memory Bandwidth: 768 GB/s

Compute Performance

  • FP32 Performance: 34.71 TFLOPS (34,710 GFLOPS)
  • Pixel Fill Rate: 162.7 GPixels/s
  • Texture Fill Rate: 542 GTexels/s

Display Outputs

  • Ports: 4x DisplayPort 1.4 (DP-to-DVI adapter included)

Cooling

  • Cooling System: Active air cooling, 1x 65mm radial fan
  • Fans: 1

Physical

  • Dimensions: ~267mm L x 112mm H (4.4in x 10.5in)
  • Slot Width: 2 slots

Power Requirements

  • TDP: 230W
  • Power Connector: 1x 8-pin
  • Interface: PCIe 4.0 x16

API Support

  • Graphics APIs: OpenGL 4.6, DirectX 12, Shader Model 6.5, Vulkan 1.2
  • Multi-GPU: 100GB/s RTX NVLink (HB bridge)

Warranty

  • Warranty Period: 3 years
