Procab HDMI A male - HDMI A male - LSHF 10 meter

Procab HDMI A male - HDMI A male - LSHF 10 meter
More Info

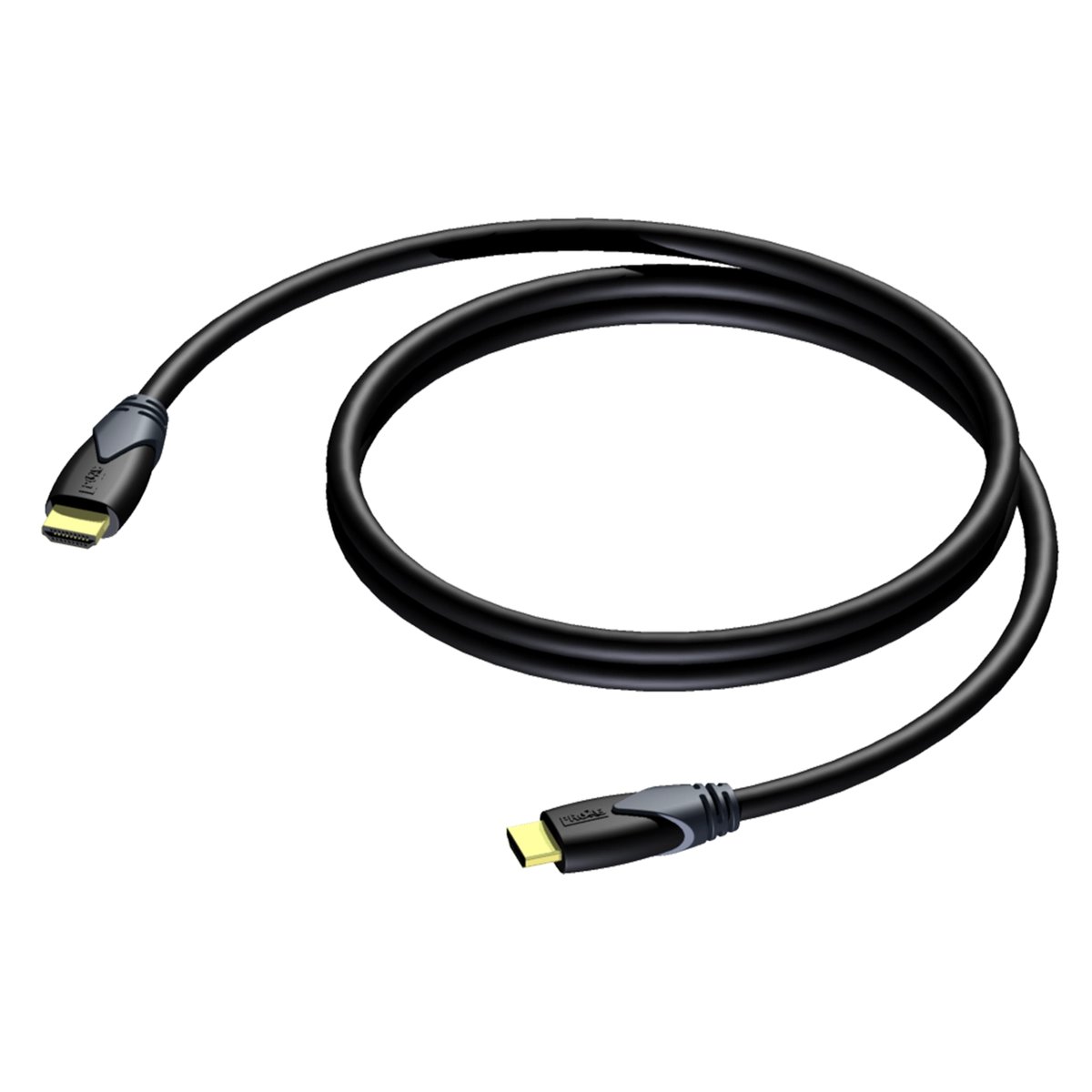

The Procab CLV200/10 is a 10 metre HDMI cable with an HDMI Type A male plug at each end, from Procab's Classic Series for AV and IT installations. Its outer jacket is LSHF (low smoke, halogen free) material, 8.8 mm in diameter, which gives off very little smoke and no toxic halogen gases if exposed to fire, so it complies with the requirements for cable runs in public buildings such as schools, hotels, offices, auditoriums and houses of worship. Inside are five individually shielded 24 AWG oxygen-free copper pairs plus four separate wires; Procab rates it as a High Speed HDMI with Ethernet cable at lengths up to 10 m, so this length still carries 1080p and beyond (including 4K, 3D and deep colour) plus the HDMI Ethernet channel. Triple shielding - aluminium-Mylar foil on each pair plus an overall foil and high-coverage oxygen-free copper braid - protects against interference. It is rated from -20 to +80 degrees C for fixed installation, with a minimum bending radius of eight times the outer diameter. Note that Procab lists the CLV200 range as discontinued, so this is remaining stock.

R2,198.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Cable

  • Connectors: HDMI Type A male to HDMI Type A male
  • Length: 10 m
  • Rating: High Speed HDMI with Ethernet (up to 10 m)
  • Conductors: 5 individually shielded 24 AWG pairs + 4 wires, OFC
  • Shielding: Triple (Al-Mylar foil + OFC braid)
  • Jacket: LSHF, black, 8.8 mm Ø

Installation

  • Temperature (fixed): -20 to +80 °C
  • Bending radius (fixed / mobile): 8x / 10x outer diameter
  • Standards: RoHS2, REACH, IEC 61034 smoke, EN 50267-2-1 halogen free
