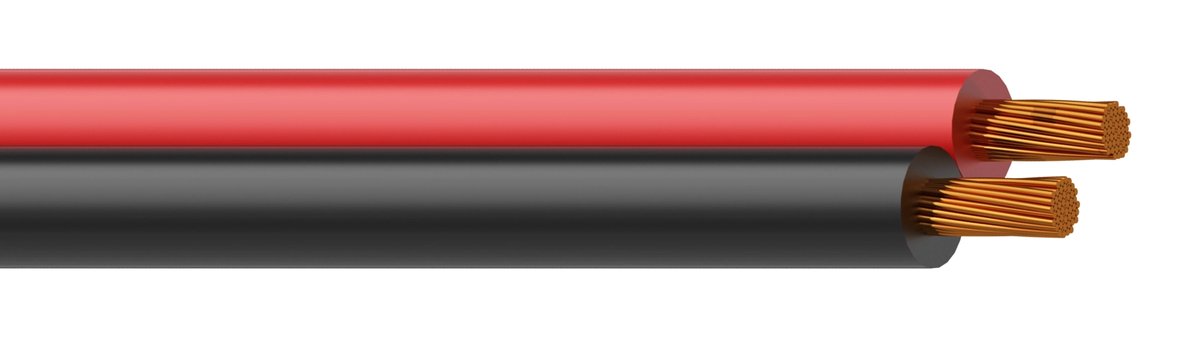

Procab Loudspeaker cable - 2 x 2.5 sq. mm - 13 AWG - CCA 100 meter

Procab Loudspeaker cable - 2 x 2.5 sq. mm - 13 AWG - CCA 100 meter
More Info

The Procab ALS25/1 is a 100-metre roll of 2-core parallel loudspeaker cable with a 2 x 2.5 mm2 (13 AWG) section, for installers wiring passive speakers in shops, restaurants, bars, churches, schools and offices, and for home cinema and multi-room audio runs. The conductors are copper-clad aluminium (CCA), an aluminium core bonded inside a copper sleeve (about 85 percent aluminium and 15 percent copper). This makes the cable lighter and more affordable than pure copper while still being easy to solder, with a lead resistance of 1.12 Ohm per 100 m. Each conductor is made of 49 strands of 0.25 mm. The flexible PVC jacket measures 3.6 x 7.4 mm and is colour-coded red and black to make polarity easy to follow. The cable is rated for up to 300 V and for -40 to +80 degrees C in fixed installation (-25 to +70 degrees C mobile), with a minimum bending radius of 8 times the diameter when fixed. Procab has replaced this code with the ALS25-ECA (CPR-rated) version.

R2,584.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Construction

  • Cores: 2, parallel
  • Section: 2.5 mm² (13 AWG)
  • Conductor: CCA, 49 x 0.25 mm
  • Jacket: Flexible PVC, 3.6 x 7.4 mm, red/black

Electrical & Mechanical

  • Lead resistance: 1.12 Ω / 100 m
  • Max. operating voltage: 300 V
  • Temperature (fixed / mobile): -40 to +80 °C / -25 to +70 °C
  • Bending radius (fixed / mobile): 8x / 10x outer diameter

Packaging

  • Length: 100 m
  • Procab code: ALS25/1
