Radial Engineering Radial Ice Cube Line level isolator, passive 1 channel balanced with Eclipse transfomer

Radial Engineering Radial Ice Cube Line level isolator, passive 1 channel balanced with Eclipse transfomer
More Info

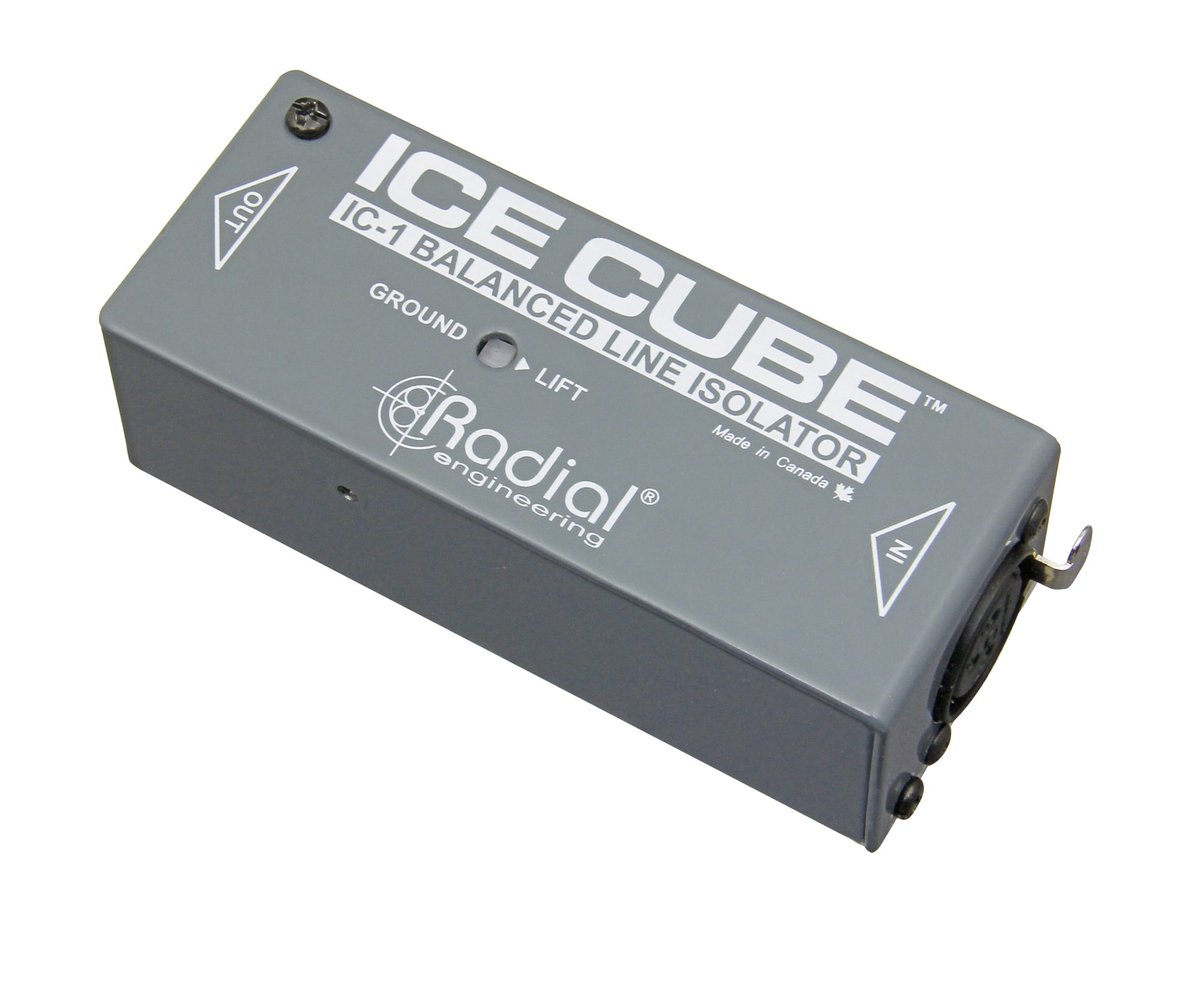

The Radial IceCube IC-1 (part R800 1031 00) is a compact, passive, single-channel balanced line-level isolator used to get rid of hum and buzz caused by ground loops and stray DC voltage. It is simply inserted between two line-level devices, for example between a DJ mixer and the main PA console, a mixer and a powered speaker, or a crossover and a power amplifier, using its female XLR input and male XLR output. Inside, a custom-made Eclipse transformer galvanically isolates the two devices, and a ground lift switch provides additional noise reduction. Radial designed it to keep the full audio bandwidth despite its small size, quoting 20 Hz to 20 kHz (±1 dB) response, 0.002% intermodulation distortion and a 25 dBu clip level, so it handles professional output levels without distortion or phase problems. No power is required. The 16-gauge steel housing measures 107 x 34 x 41 mm and weighs 0.18 kg, making it an easy problem-solver to keep in an AV technician's or sound engineer's toolbox. Covered by Radial's transferable 3-year warranty.

R1,886.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Audio

  • Circuit: Passive, custom Eclipse transformer
  • Channels: 1, balanced line level
  • Frequency response: 20 Hz - 20 kHz (±1 dB)
  • Clip level: 25 dBu
  • Intermodulation distortion: 0.002% @ -10 dBu
  • Output impedance: 600 Ω nominal

Features & I/O

  • Controls: Ground lift
  • Input / output: XLR female / XLR male
  • Power: None required

Physical

  • Construction: 16-gauge steel
  • Size: 107 x 34 x 41 mm
  • Weight: 0.18 kg
  • Warranty: 3 years, transferable
