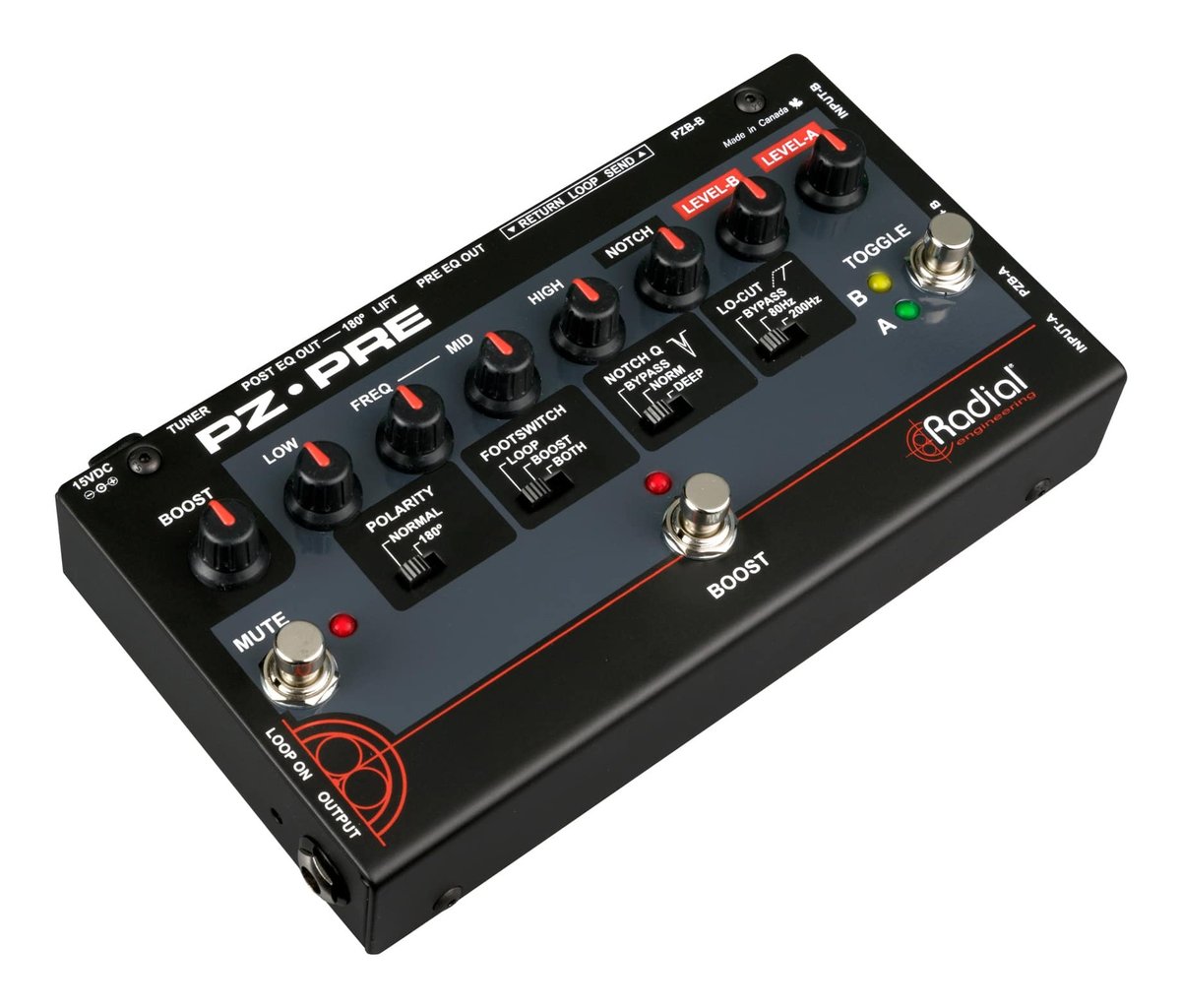

Radial Engineering Radial PZ-Pre Acoustic instrument preamp, dual input w/ EQ, notch filter and Radial DI

The Radial PZ-Pre (part R800 7085 00) is a two-channel acoustic instrument preamplifier and DI in a floor-pedal chassis, for guitarists, double bassists, violinists and other players using piezo or other pickups. Two inputs let a player switch between two instruments, such as a 6-string and a 12-string, or blend two pickup systems. Radial's discrete class-A PZB piezo boosters and an ultra-quiet preamp adapt to almost any pickup, while a semi-parametric EQ with notch and resonance filters tames feedback on loud stages. A built-in Radial DI provides balanced XLR outputs both before and after the EQ, so the front-of-house engineer can take a dry signal while the monitors get the player's tailored sound. There is also a footswitched power boost, a mute for silent tuning, an effects loop, a tuner output and an amp output, along with 180-degree polarity reverse and ground lift. The 14-gauge steel chassis measures 205 x 110 x 51 mm and weighs 1.2 kg. A 15 V DC power supply is included, and Radial provides a three-year transferable warranty.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Audio
- Channels: 2 inputs (switch or blend)
- Input impedance: 6.8 kΩ (10 MΩ with PZB active)
- Output impedance: 1 kΩ
- Outputs: Pre- and post-EQ XLR DI, amp out, tuner out
- Features: Semi-parametric EQ, notch & resonance filters, boost, mute, effects loop, polarity reverse, ground lift
General
- Construction: 14-gauge steel
- Dimensions: 205 x 110 x 51 mm
- Weight: 1.2 kg
- Power: 15 V DC 400 mA adapter (included)
- Warranty: 3 years, transferable
