Garmin Reactor 40 Hyd w/Smartpump V2, w/GHC 50 System Pack

Garmin Reactor 40 Hyd w/Smartpump V2, w/GHC 50 System Pack

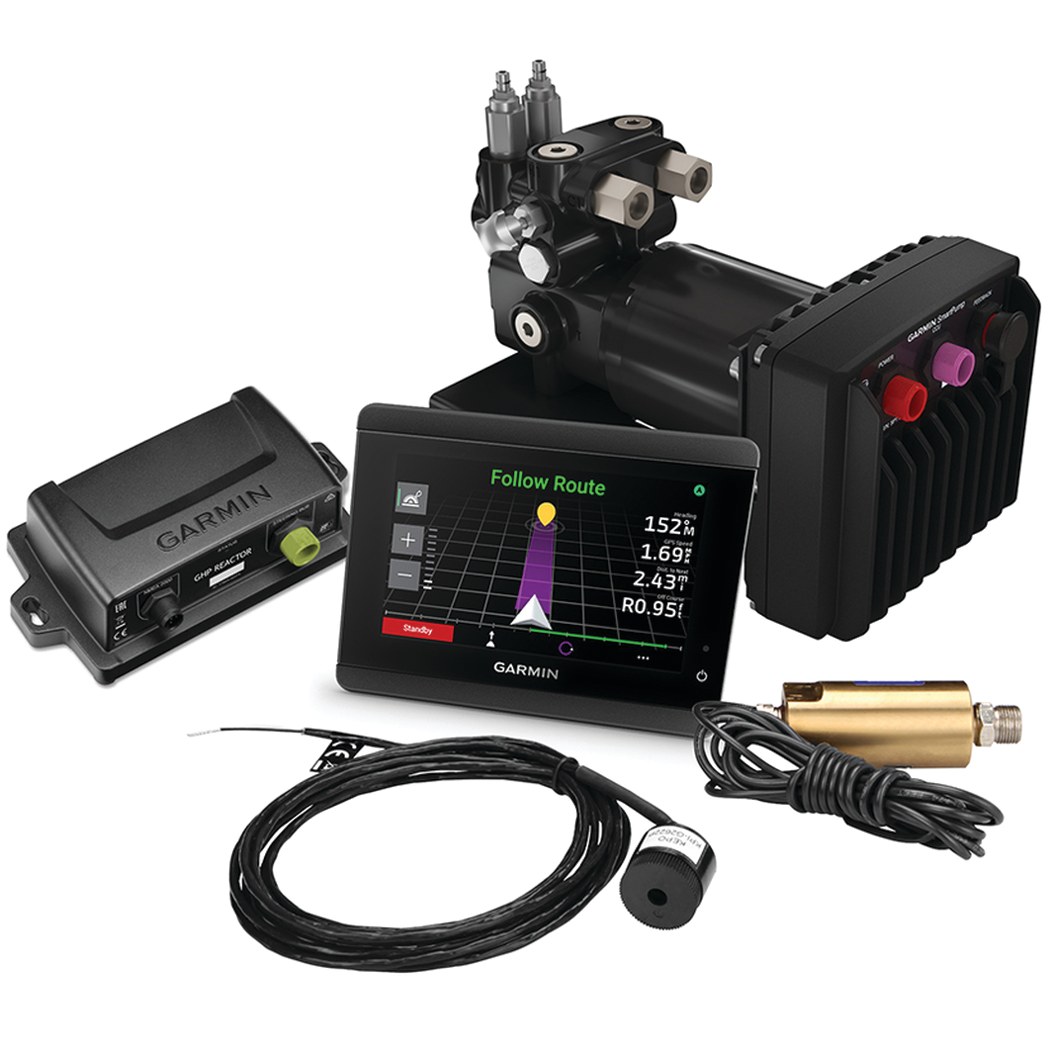

The Garmin Reactor 40 Hydraulic Corepack with SmartPump v2 is a self-contained hydraulic autopilot system built for powerboats and sailboats running hydraulic steering, and sits at the entry point of Garmin's Reactor autopilot range. This "System Pack" configuration bundles the Reactor 40 corepack (course computer/CCU plus the compact brushless SmartPump v2 hydraulic pump) together with a dedicated GHC 50 autopilot instrument, so the boat gets a standalone 5-inch sunlight-readable touchscreen control head at the helm rather than relying solely on a connected chartplotter. The corepack houses Garmin's solid-state 9-axis AHRS, letting it be mounted in almost any orientation while still tracking heading and attitude accurately in a seaway.

More Info

In use, the SmartPump v2 automatically adapts its flow rate from 0 to 2.4 L/min to suit steering cylinders from roughly 4 to 24 cu in, so one pump genuinely covers most boats rather than needing to be sized per hull. Garmin's Shadow Drive technology keeps a human in the loop at all times: turning the wheel by hand instantly disengages the autopilot, no separate button press required. Intelligent Rudder Rate Technology automatically slows rudder movement at speed and speeds it up at low speed for smoother, safer course-keeping. Power draw is under 1 A on standby, roughly 5-10 A while actively steering, with a 34 A peak. The GHC 50 shares data and settings directly with connected Garmin MFDs and other Reactor-compatible instruments.

R98,799.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Autopilot System

  • Configuration: Reactor 40 Hydraulic Corepack (CCU + SmartPump v2) with GHC 50 autopilot instrument, System Pack
  • Steering type: Hydraulic
  • Boat type: Powerboat or sailboat with hydraulic steering
  • Attitude sensor: Solid-state 9-axis AHRS
  • Rudder control: Intelligent Rudder Rate Technology (IRRT)
  • Manual override: Shadow Drive automatic disengage on manual helm input

Hydraulic Pump

  • Pump type: Compact brushless SmartPump v2
  • Flow rate: 0-2.4 L/min, self-adjusting
  • Cylinder compatibility: Approx. 4-24 cu in steering cylinders

Power

  • Standby current: < 1 A
  • Engaged current: 5-10 A
  • Peak current: 34 A

Included Display

  • Instrument: GHC 50 autopilot control head
  • Screen: 5 in sunlight-readable touchscreen

Connectivity

  • Network: NMEA 2000 / Garmin Marine Network, shares data with compatible Garmin chartplotters
