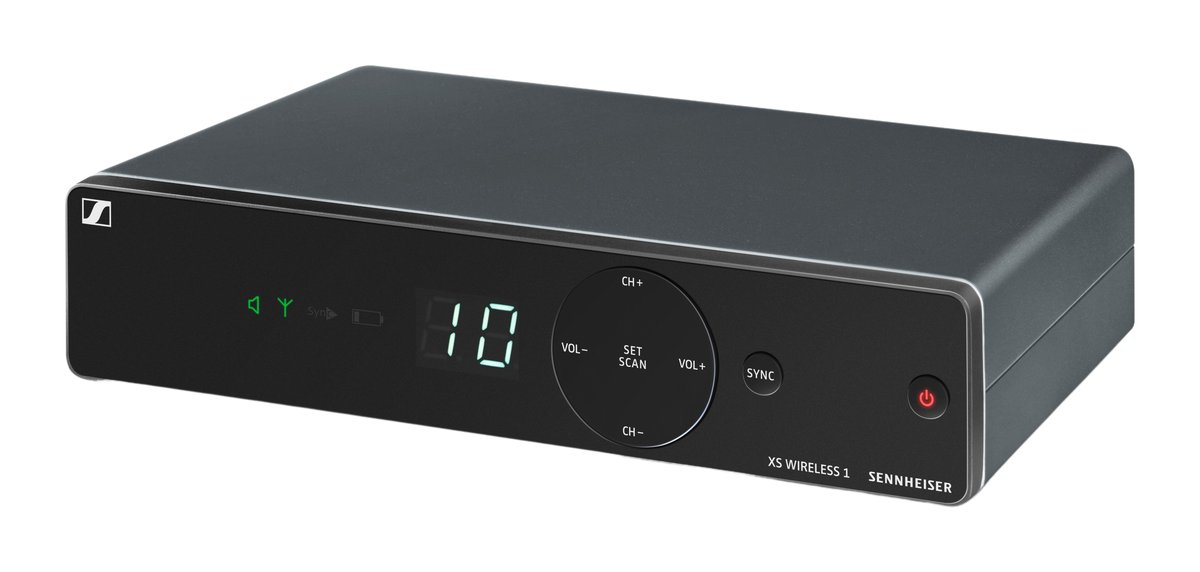

Sennheiser EM-XSW 1-B Wideband FM Receiver, Double Superheterodyne, 614-638MHz

The Sennheiser EM-XSW 1-B (article 507309) is the stationary receiver from the XS Wireless 1 series, operating in the B frequency range of 614 to 638 MHz. It is sold separately so it can be used to replace a receiver, or to build a system with a separate XS Wireless 1 handheld or bodypack transmitter. The receiver uses a double-superheterodyne design with antenna-switching diversity and integrated antennas, so there are no external antennas to fit. Setup is simple: automatic frequency management scans for a clean channel and a SYNC button pairs the transmitter via infrared, with up to 10 compatible channels available in one frequency bank. Audio leaves on a balanced XLR output (up to +12 dBu) and an unbalanced 6.3 mm jack (up to +6 dBu), with a switchable line/mic level. Audio frequency response is 50 to 16,000 Hz and signal-to-noise is at least 103 dB(A). XS Wireless 1 is aimed at singers, presenters, schools and houses of worship who need reliable, easy wireless. Check local frequency regulations before use.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
RF
- Frequency range: 614 - 638 MHz (B range)
- Receiver principle: Double superheterodyne
- Diversity: Antenna-switching diversity, integrated antennas
- Compatible channels: Up to 10
Audio
- Frequency response: 50 - 16,000 Hz (-3 dB)
- Signal-to-noise ratio: >= 103 dB(A)
- THD: <= 0.9 %
- Outputs: XLR balanced (+12 dBu), 6.3 mm jack unbalanced (+6 dBu)
Physical
- Dimensions: approx. 200 x 42 x 127 mm
- Warranty: 2 years
