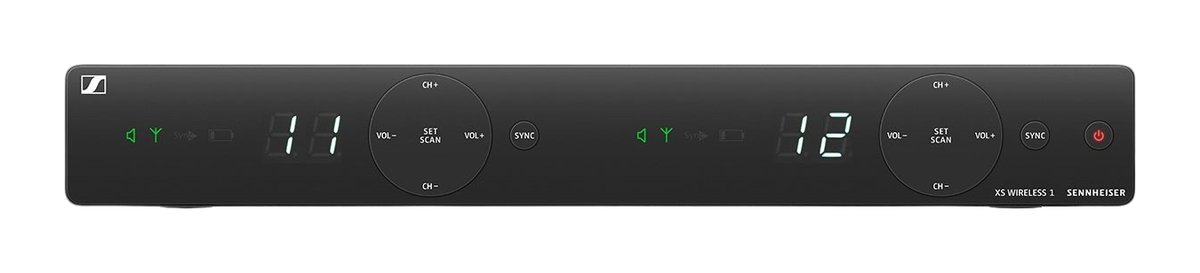

Sennheiser EM-XSW 1 DUAL-B Dual Channel Receiver for XSW 1, NT 12-5 CW Power Supply, 614-638MHz

The Sennheiser EM-XSW 1 DUAL-B (article 508278) is a two-channel rack receiver from the XS Wireless 1 range, operating in the B frequency range of 614 to 638 MHz. It lets two XSW 1 handheld or bodypack transmitters run from one compact unit, which suits small bands, churches, schools and conference rooms that need two wireless microphones. Each channel is a double-superheterodyne receiver with antenna-switching diversity via internal antennas, with eight frequency banks of up to ten factory-preset channels and 2.4 GHz synchronisation with the transmitters. Audio response is 50 Hz to 16 kHz, and each channel has its own balanced XLR output (+12 dBu) and unbalanced 6.3 mm jack output (+6 dBu), plus a switchable 20 dB line/mic level. The receiver has a rugged ABS housing measuring about 320 x 42 x 127 mm and weighs about 610 g. It is supplied with the NT 12-5 CW power supply (12 V DC). Sennheiser covers it with a two-year warranty.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
RF
- Frequency range: 614 - 638 MHz (B range)
- Channels: 2
- Receiver principle: Double superheterodyne
- Diversity: Antenna-switching diversity, internal antennas
- Presets: 8 banks, up to 10 channels each
Audio
- Frequency response: 50 - 16,000 Hz (-3 dB)
- XLR output (balanced): +12 dBu
- 6.3 mm jack (unbalanced): +6 dBu
Physical
- Power supply: 12 V DC / 500 mA (NT 12-5 CW included)
- Housing: ABS
- Dimensions: Approx. 320 x 42 x 127 mm
- Weight: Approx. 610 g
Warranty
- Manufacturer warranty: 2 years
