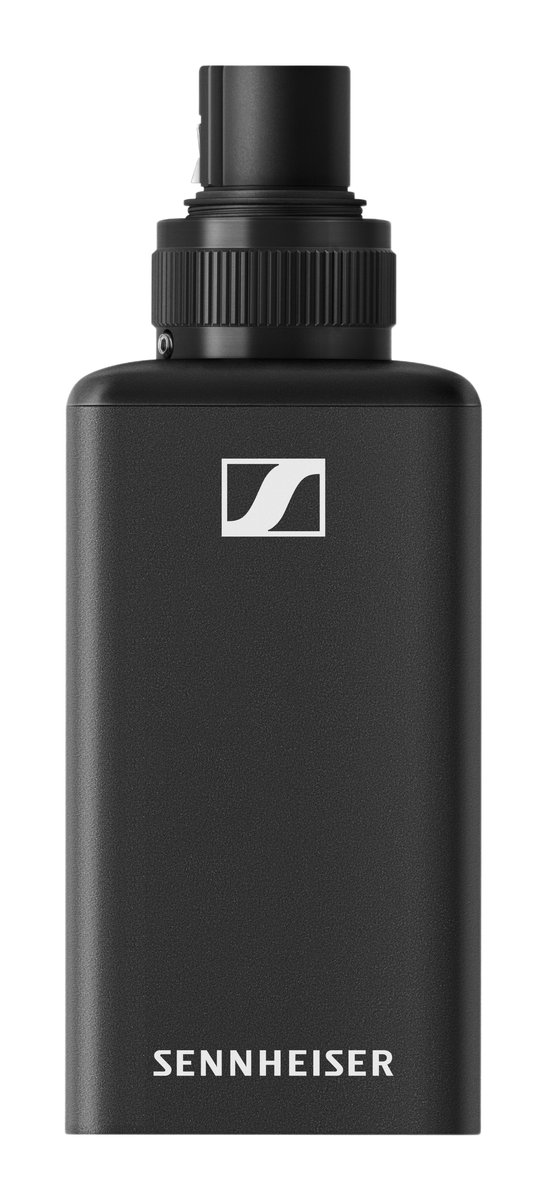

Sennheiser EW-DP SKP (S1-7), Plug-on Transmitter

The Sennheiser EW-DP SKP (S1-7, article 700083) is a digital UHF plug-on transmitter for the Evolution Wireless Digital portable (EW-DP) system. It plugs onto the XLR output of a dynamic or condenser microphone - a shotgun, handheld interview mic or boom mic - and turns it into a wireless source, supplying +48 V phantom power where needed. A 3.5 mm input also accepts a lavalier, and a microSD card slot allows a backup recording in the transmitter. It is intended for filmmakers, broadcasters and videographers working with EW-DP receivers such as the EW-DP EK. The S1-7 frequency range covers 606.2 to 662 MHz. Sennheiser specifies 1.9 ms latency, 20 Hz to 20 kHz response, 134 dB dynamic range and a 10 mW audio-link transmission power, with Bluetooth Low Energy for set-up from the Smart Assist app. It runs on two AA batteries or Sennheiser's BA 70 rechargeable pack, and weighs about 163 g. Sennheiser covers it with a two-year warranty.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
RF
- Frequency range: 606.2 - 662 MHz (S1-7)
- Transmission power: 10 mW ERP (audio link)
- Bluetooth: BLE, 2402 - 2480 MHz
Audio
- Latency: 1.9 ms
- Frequency response: 20 Hz - 20 kHz (-3 dB)
- Dynamic range: 134 dB
- Inputs: XLR (with +48 V phantom), 3.5 mm lav input
Other
- Recording: microSD card slot
- Power: 2 x AA or BA 70 rechargeable pack
- Weight: 163 g
- Manufacturer warranty: 2 years
