Esener Solarix Esener 5.5kVA 48V Off-Grid Inverter Pre-Built PowerBoard Plus (SOLPBPLUSES55KVA)

Esener Solarix Esener 5.5kVA 48V Off-Grid Inverter Pre-Built PowerBoard Plus (SOLPBPLUSES55KVA)

Esener Solarix Esener 5.5KVA Power Board - 5.5KVA 48VDC Off-Grid Solar Inverter Power Board

More Info

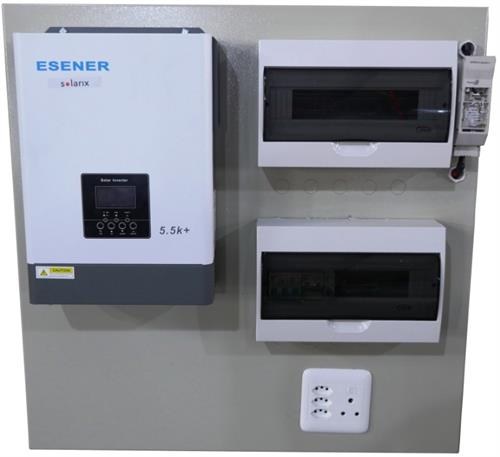

The Solarix Esener 5.5kVA PowerBoard is a factory pre-wired inverter system on one wall-mount board, aimed at homes and small offices that want reliable load-shedding backup now and solar later. It combines a 5.5kVA, 48V Esener pure sine wave off-grid inverter rated at 5500W with a 100A MPPT solar charge controller (145V DC PV input) and up to 100A battery charging. Esquire lists it as a parallel-capable inverter (up to 12 units, single phase). The inverter is pre-wired to an AC/DC-ready DB with a 40A AC UPS changeover, main and UPS breakers, plug circuit breaker, surge protector and DC disconnect fuse, plus an unpopulated DB ready for solar, a Wi-Fi dongle and an emergency plug socket with 2-pin and USB ports. Only four wires go to the home's existing DB, which Esquire says saves around eight hours of installation. Use four 12V gel/AGM batteries or a 48V lithium pack; batteries and panels are sold separately. 1-year limited warranty.

R15,999.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Inverter

  • Brand/type: Esener 5.5 kVA pure sine wave off-grid inverter
  • Rated power: 5500 W
  • Battery voltage: 48 V DC
  • Solar charge controller: 100A MPPT
  • PV input: Up to 145 V DC
  • Max charge current: 100 A
  • Parallel: Up to 12 units, single phase (Esquire)

Board

  • DB board: AC/DC-ready, pre-wired to inverter on AC and DC sides
  • Changeover: 40A AC UPS changeover switch
  • Protection: AC input circuit breaker, surge protector, DC disconnect fuse
  • Mounting: Wall-mount board, bracket included

Extras

  • Emergency socket: Plug socket with 2-pin and USB ports
  • Monitoring: Wi-Fi dongle (shown on mailer); RS485 BMS comms

Batteries

  • Supported: 4x 12V gel/AGM/lead-acid or 48V lithium
  • Included: No batteries or panels

Warranty

  • Warranty: 1 year limited
