Solarix Sun 6.5kVA 48V High-Voltage Hybrid Inverter PowerBoard Plus - Pre-Wired Semi Plug-and-Play (SOLPBSUN65KVA)
Solarix Sun 6.5KVA Power Board - 48VDC High Voltage Inverter And Semi Plug And Play Power Board

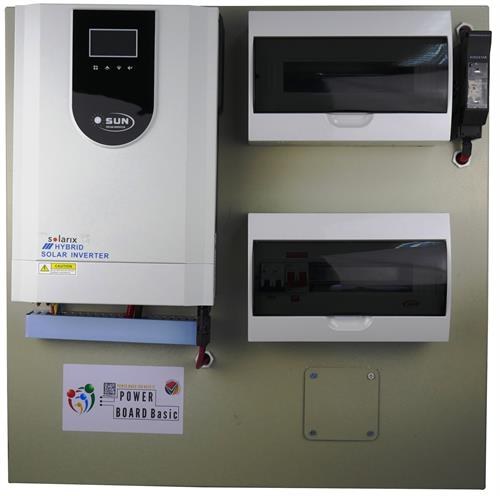

The Solarix Sun 6.5kVA PowerBoard is a pre-wired, wall-mounted inverter system for medium homes and small businesses that want proper load-shedding backup with room for solar. At its heart is a 6.5kVA, 48V Solarix Sun pure sine wave hybrid inverter rated at 6200W output, with a high-voltage 120A MPPT solar charge controller (360V DC nominal, 500V DC maximum PV input), 100A maximum battery charge current and 230V AC input. It is factory-wired to an AC/DC-ready distribution board with a 40A AC UPS changeover, AC input circuit breaker, surge protection and a DC disconnect fuse, plus an unpopulated DB ready for solar. Esquire says only four wires need connecting to the existing DB, saving the installer around eight hours. Pair it with four 12V gel/AGM batteries or a 48V lithium pack; batteries, PV panels and accessories are sold separately, and a Wi-Fi dongle can be added. Wall bracket included; 12-month warranty.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Inverter
- Brand/type: Solarix Sun 6.5 kVA pure sine wave hybrid inverter
- Rated output: 6200 W
- Battery voltage: 48 V DC
- Solar charge controller: 120A high-voltage MPPT
- PV voltage: 360 V DC nominal / 500 V DC max
- Max charge current: 100 A
- Max battery current: 125 A
- AC input: 230 V AC, 40 A max
Board
- DB board: AC/DC-ready, pre-wired to inverter on AC and DC sides
- Changeover: 40A AC UPS changeover switch
- Protection: AC input circuit breaker, surge protector, DC disconnect fuse
- Mounting: Wall-mount board, bracket included
Batteries
- Supported: 4x 12V gel/AGM/lead-acid or 48V lithium
- Included: No batteries, panels or accessories
Warranty
- Warranty: 12 months
