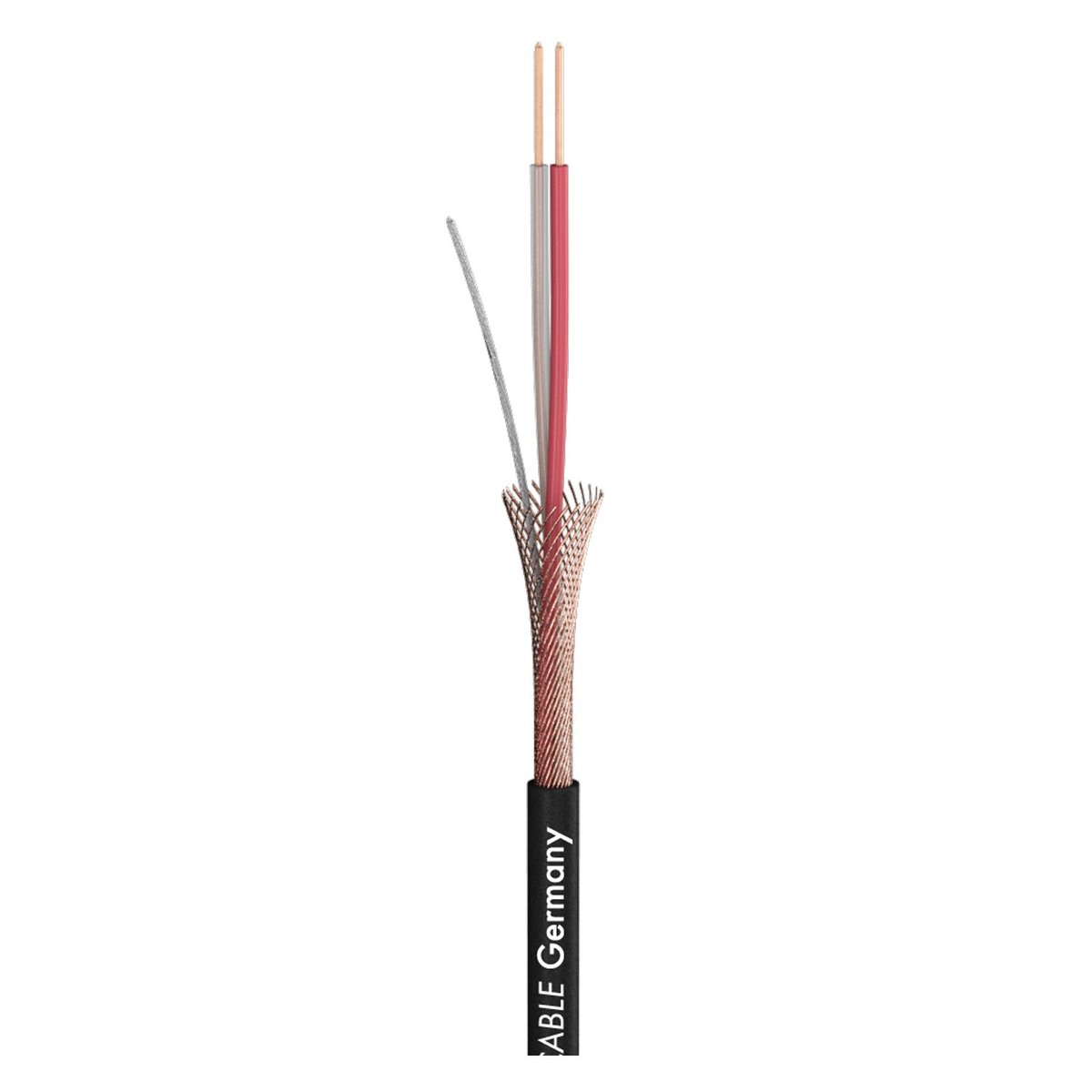

Sommer Cable Cicada SO-FD14 (2 x 0.14mm), black, drain wire + tin plated

Sommer Cable Cicada SO-FD14 (2 x 0.14mm), black, drain wire + tin plated
More Info

Sommer Cable SC-Cicada SO-D14 (article 200-0451) is a very thin two-core shielded cable, only 2.6 mm in diameter, sold by the metre from bulk. It was developed as a quality switching line for internal wiring in racks, mixing consoles and audio components, and is now widely used on clip-on and headworn microphones, headphones and speech units. It has two 18-strand 0.14 mm² (AWG 26) conductors in PE insulation under a tight helical copper mesh screen with 95 % coverage, plus a pre-stranded, tin-plated 0.22 mm² drain wire that makes the screen easy to terminate and adds kink protection and tear strength. The black jacket is Sommer's notch-proof, temperature-resistant PUR Master-Blend compound. Capacitance is 65 pF/m between conductors and 120 pF/m to the screen, weight about 15.9 g per metre and the temperature range -30 to +70 °C. Use it where space is tight, such as mini-XLR or 3.5 mm plugs and internal wiring looms.

R34.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Construction

  • Conductors: 2 x 0.14 mm² (AWG 26), 18 strands
  • Insulation: PE
  • Shielding: Copper spiral 95 % + tin-plated 0.22 mm² drain wire
  • Jacket: PUR Master-Blend, black, Ø 2.60 mm

Electrical

  • Capacitance cond./cond.: 65 pF/m
  • Capacitance cond./shield: 120 pF/m

General

  • Weight: 15.9 g/m
  • Temperature range: -30 to +70 °C
  • Supplied: 100 m spool (manufacturer)
  • EAN: 4049371002066
