Sommer Cable MICRO-STAGE microphone cable, 2x0,14mm_/ copper spiral shielding, Diameter 5,8mm, black

Sommer Cable MICRO-STAGE microphone cable, 2x0,14mm_/ copper spiral shielding, Diameter 5,8mm, black
More Info

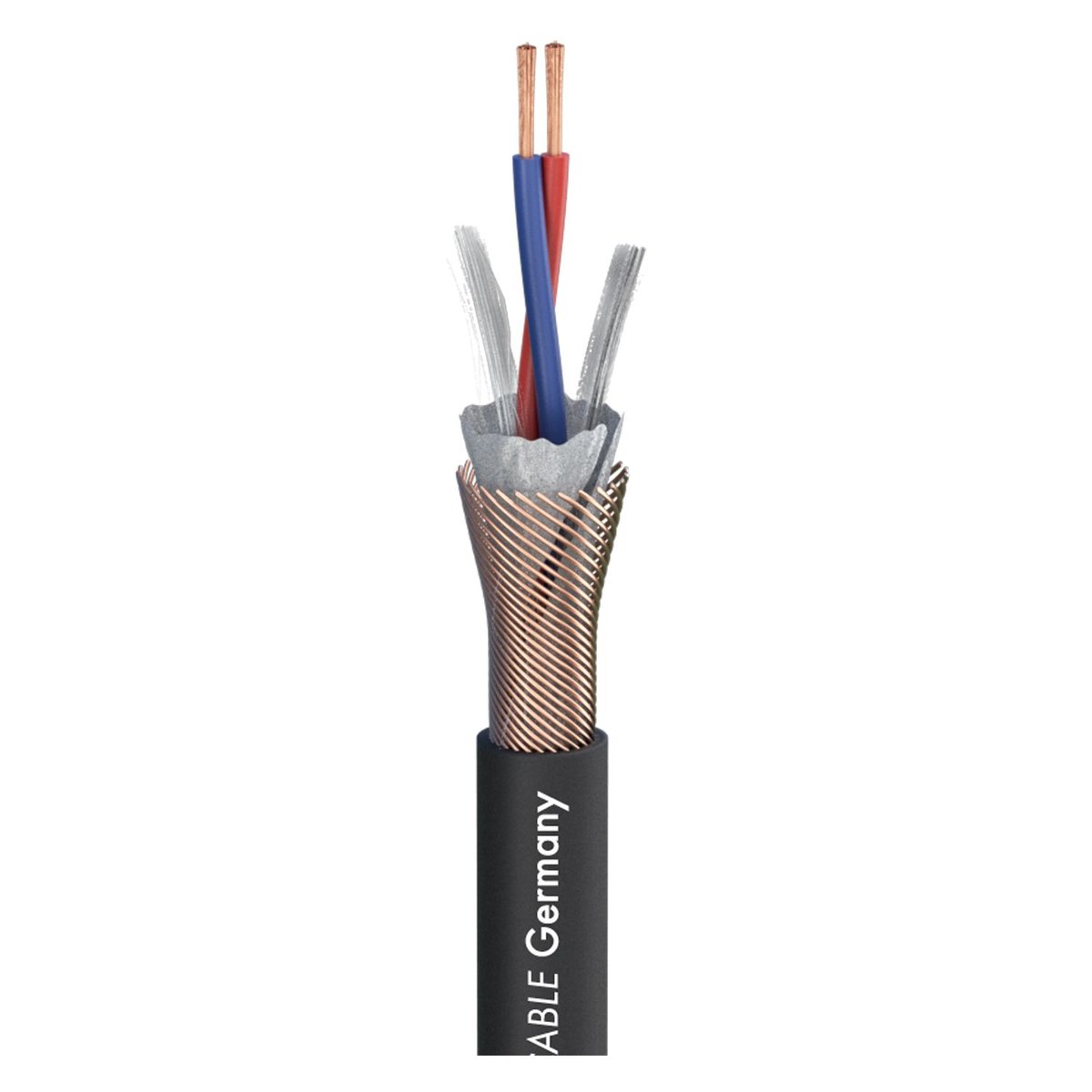

Sommer Cable SC-MICRO-STAGE (article 200-0371) is a compact balanced microphone cable that is also rated for 110-ohm digital signals such as AES/EBU and DMX, sold by the metre from bulk. At 5.8 mm it is thinner than a standard stage cable, which suits stereo jack plugs and XLR connectors with a small cable entry, and it takes little space as a patch or MIDI cable in a rack or home studio. It has two 18-strand 0.14 mm² (AWG 26) oxygen-free copper conductors in foamed skin PE insulation, a dense helical copper screen with 100 % coverage and a cold-flexible, soft black PVC jacket. Sommer states it carries analogue and 110-ohm digital signals over distances greater than 100 metres. Capacitance is 45 pF/m between conductors and 120 pF/m to the screen. It weighs about 50 g per metre, is UV resistant and is rated from -25 to +80 °C. Typical uses are stage and studio microphone leads, short DMX links and AES digital interconnects.

R36.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Construction

  • Conductors: 2 x 0.14 mm² (AWG 26), OFC, 18 strands
  • Insulation: PE (skin foam)
  • Shielding: Copper spiral, 100 %
  • Jacket: PVC, black, Ø 5.80 mm

Electrical

  • Capacitance cond./cond.: 45 pF/m
  • Capacitance cond./shield: 120 pF/m
  • Digital: 110 Ω AES/EBU, DMX

General

  • Weight: 50 g/m
  • Temperature range: -25 to +80 °C
  • Supplied: 100 m / 500 m spool (manufacturer)
  • EAN: 4049371176170
