Sommer Cable Microphone Cable SC-Galileo 238; 2 x 0,38 sq. mm; PVC 7,00 mm; black

Sommer Cable Microphone Cable SC-Galileo 238; 2 x 0,38 sq. mm; PVC 7,00 mm; black
More Info

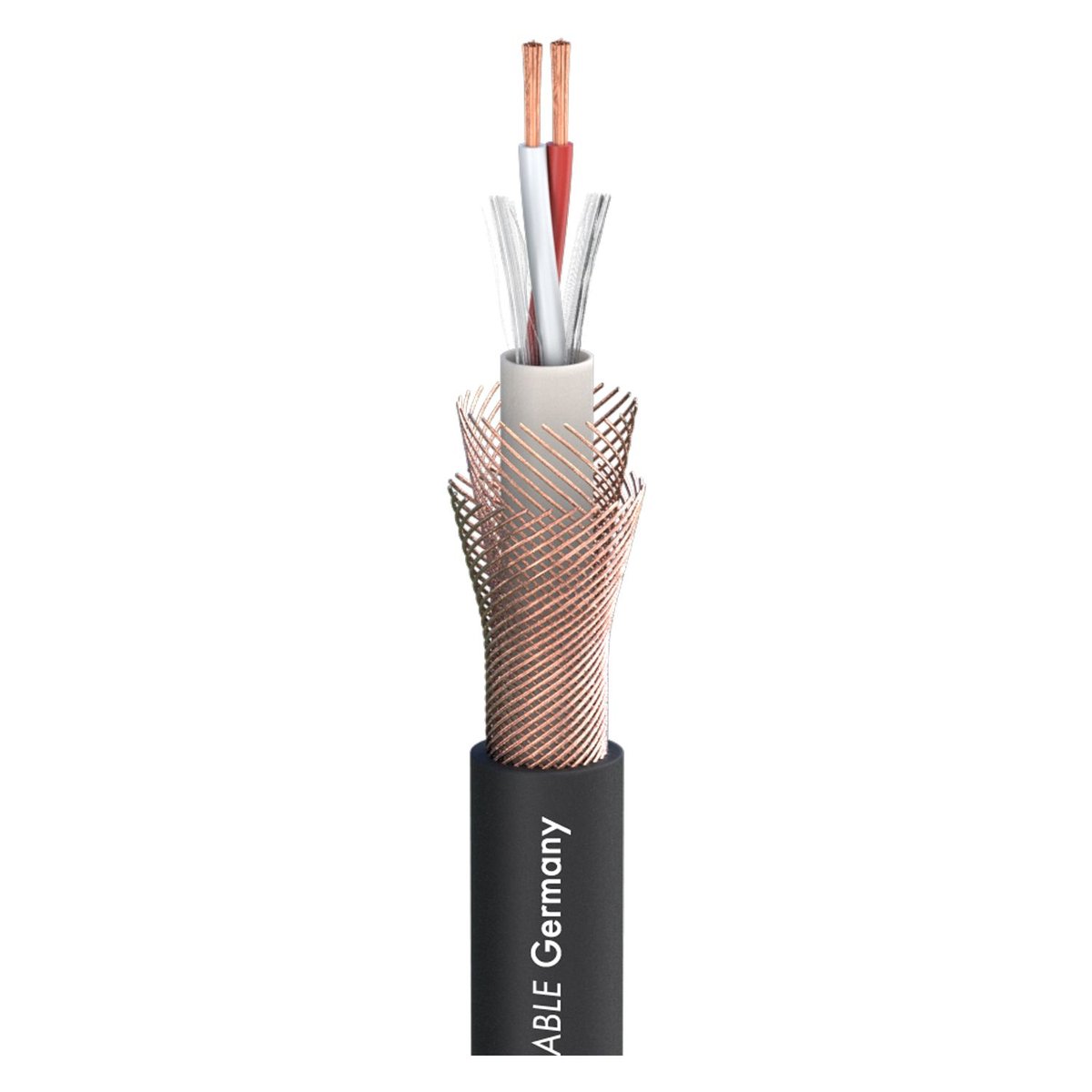

Sommer Cable SC-Galileo 238 (200-0251) is a premium balanced microphone cable for studio, stage and broadcast use. Its two 0.38 mm² (AWG 21) oxygen-free copper conductors are embedded in PVC and protected by a dual, counter-wound (reverse stranded) helical copper screen giving 100 % coverage, which gives excellent noise rejection and makes the cable twist-proof and long-lasting. The thicker conductors keep losses low on runs longer than 100 m, and Sommer quotes 50 pF conductor-to-conductor capacitance per metre and 53.9 Ω/km conductor resistance. The black PVC jacket is 7.0 mm in diameter, the cable weighs 60 g per metre and is rated from -25 to +80 °C with CPR class Fca. It is used for microphone and line leads, OB van and radio installations, and even high-end hi-fi interconnects. It terminates into standard XLR and jack connectors.

R75.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Construction

  • Conductors: 2 x 0.38 mm² (AWG 21), OFC
  • Screening: Dual counter-rotating copper spiral, 100 %
  • Jacket: PVC, black, 7.0 mm
  • Weight: 60 g/m

Electrical

  • Impedance: 100 Ω
  • Capacitance cond./cond.: 50 pF/m
  • Conductor resistance: 53.9 Ω/km
  • Shield resistance: 20 Ω/km

Environmental

  • Temperature: -25 to +80 °C
  • CPR Euroclass: Fca
  • EAN: 4049371001212
