Sommer Cable Multipair SC-Quantum QMC; S-PVC; black | 2 x 0,14 sq. mm x number of pairs | 04

Sommer Cable Multipair SC-Quantum QMC; S-PVC; black | 2 x 0,14 sq. mm x number of pairs | 04
More Info

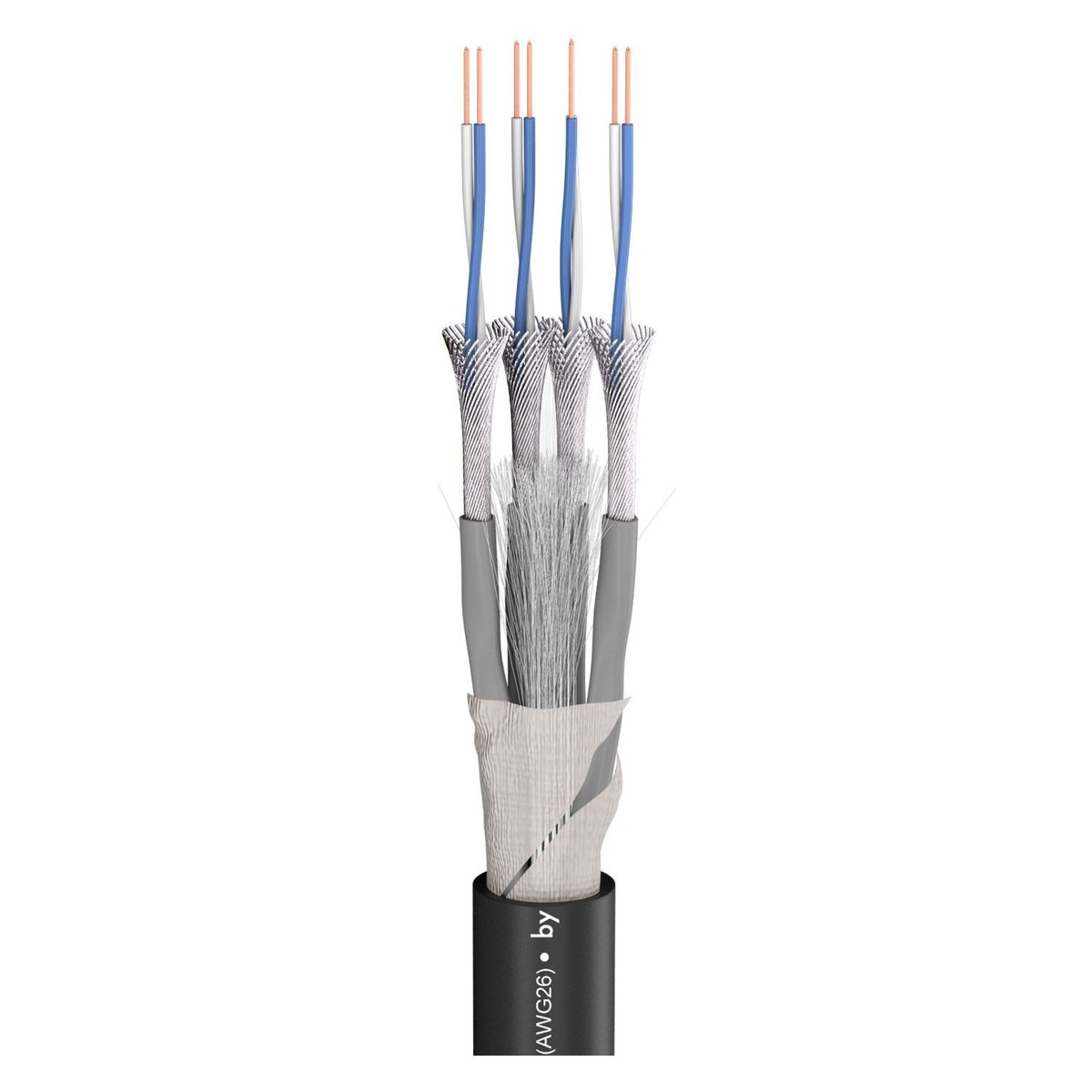

Sommer Cable SC-Quantum QMC04 (100-0451-04) is a highly flexible 4-pair multicore cable for building analogue and digital audio looms, stage multicores and permanent installations. Each of the four pairs of 0.14 mm² (AWG 26) superfine oxygen-free copper conductors is individually tube-insulated, numbered and screened by a helical copper mesh with 99 % coverage, so channels stay separated and can be earthed separately or centrally. With a low 45 pF wire-to-wire capacitance it stays within the 110 Ω AES/EBU standard over long runs, so it also suits digital audio and DMX. The soft, notch-resistant black S-PVC jacket (10.2 mm diameter) is cold-flexible down to -30 °C and the cable is torsion-free, so it can be coiled in a figure-of-eight without twisting. The pairs are thin enough to terminate directly into XLR connectors. Weight is 131.4 g per metre. Typical users are live sound engineers, studios and installers.

R126.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Construction

  • Pairs: 4 x 2 x 0.14 mm² (AWG 26)
  • Screening: Individual helical Cu mesh, 99 % coverage
  • Conductor: OFC oxygen-free copper
  • Construction code: [04(2LI2Y0,14mm²)DY+(0,5mm²)Y]Y

Physical

  • Jacket: S-PVC, black
  • Outer diameter: 10.2 mm
  • Weight: 131.4 g/m
  • Properties: Torsion-free, cold-flexible

Electrical

  • Wire/wire capacitance: 45 pF
  • Standard: 110 Ω AES/EBU
  • EAN: 4049371000987
