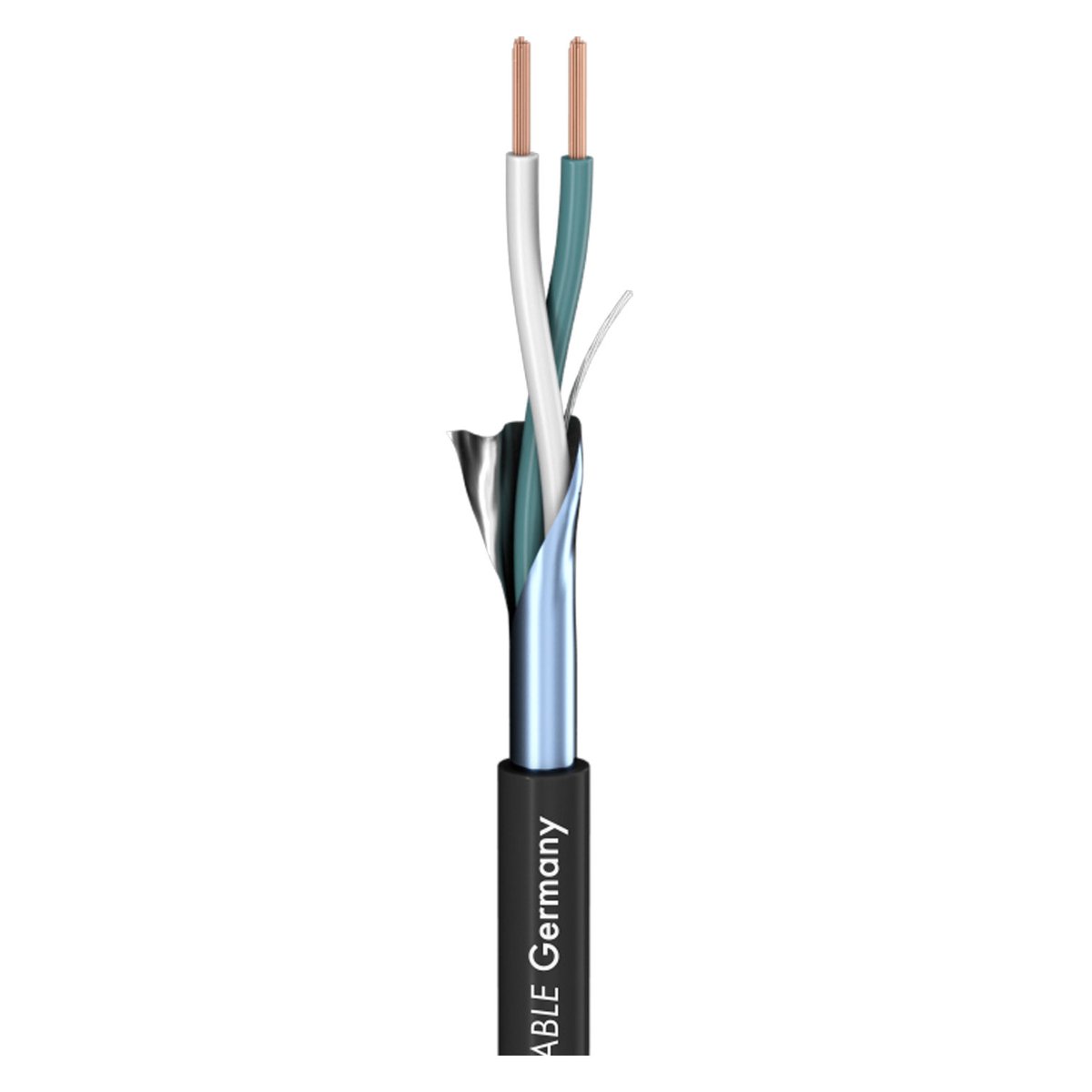

Sommer Cable Patch cable SC-Isopod SO-F22; 2 x 0,22 sq. mm; PVC 3,30 mm; black

Sommer Cable Patch cable SC-Isopod SO-F22; 2 x 0,22 sq. mm; PVC 3,30 mm; black
More Info

Sommer Cable SC-Isopod SO-F22 (article 200-0401) is a slim foil-screened two-core cable, 3.3 mm in diameter, sold by the metre from bulk. It is designed mainly for internal wiring of racks, switching cabinets and audio and hi-fi components, where its 'memory effect' lets it be bent around corners and stay put for a tidy loom. It has two pre-stranded 0.22 mm² (AWG 24) conductors of 7 strands each in PE insulation, a pre-stranded tin-plated drain wire for quick termination, and an aluminium/PET foil screen for 100 % coverage that peels away with the jacket when stripped. The black PVC jacket is robust for long life. Capacitance is 74 pF/m between conductors and 143 pF/m to the screen, conductor resistance 88 ohm per km. It weighs about 16 g per metre, is UV resistant and is rated from -25 to +70 °C. It is a fixed-installation cable rather than a flexible stage lead, so it is not the right choice for microphone cables that are coiled every day.

R22.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Construction

  • Conductors: 2 x 0.22 mm² (AWG 24), 7 strands
  • Insulation: PE
  • Shielding: AL/PT foil + tin-plated drain wire, 100 %
  • Jacket: PVC, black, Ø 3.30 mm

Electrical

  • Capacitance cond./cond.: 74 pF/m
  • Capacitance cond./shield: 143 pF/m
  • Conductor resistance: 88 Ω/km

General

  • Weight: 16 g/m
  • Temperature range: -25 to +70 °C
  • Supplied: 200 m spool (manufacturer)
  • EAN: 4049371004480
