Sommer Cable Patch & Microphone Cable SC-Peacock MKII; DMX: 2 x 0,22 sq. mm; S-PVC; 9,2 x 4,5 mm; black

Sommer Cable Patch & Microphone Cable SC-Peacock MKII; DMX: 2 x 0,22 sq. mm; S-PVC; 9,2 x 4,5 mm; black
More Info

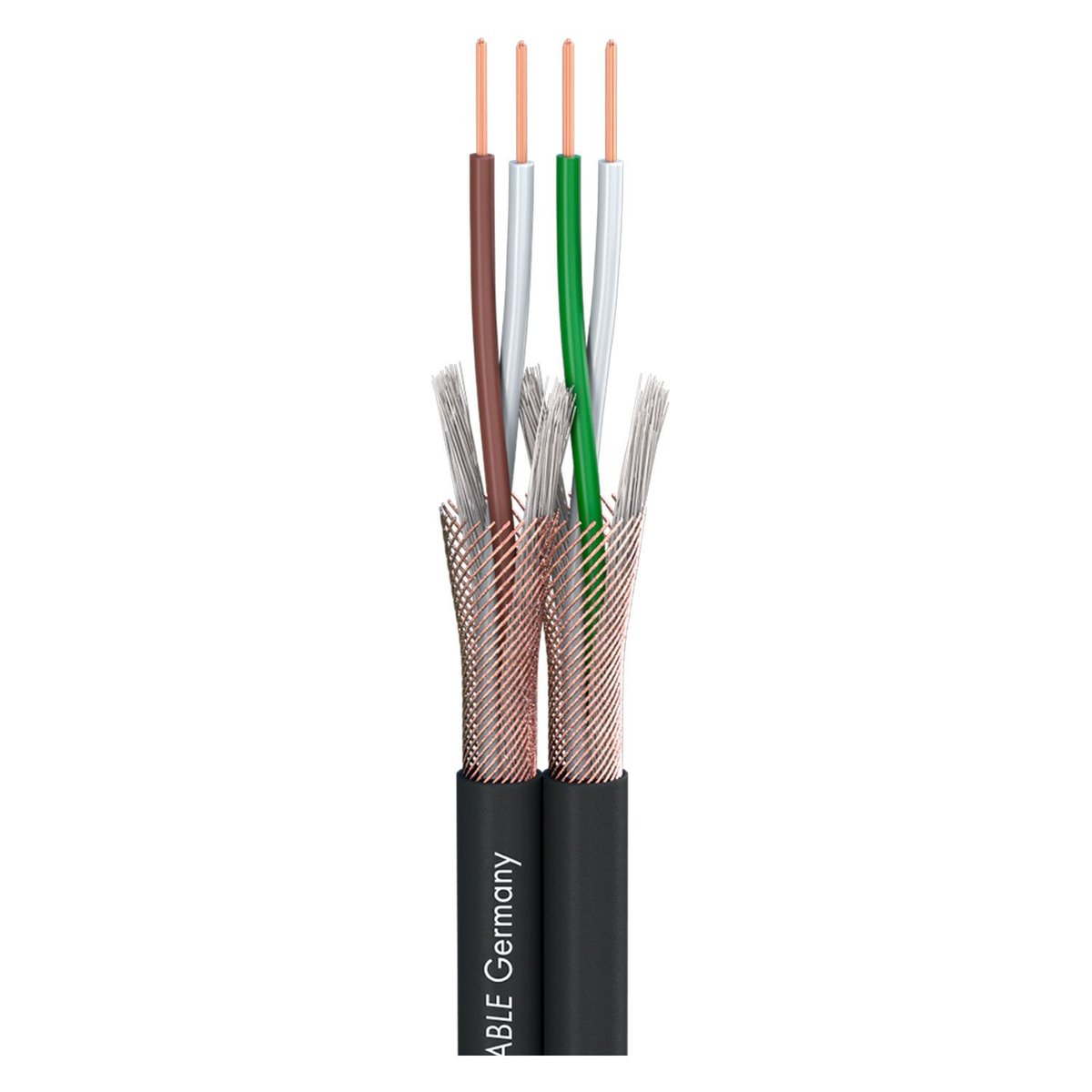

Sommer Cable SC-Peacock MKII (200-0551) is a twin (side-by-side) patch and microphone cable with two separately screened pairs in one flat black S-PVC jacket measuring 9.2 x 4.5 mm. It is mainly used for wiring stereo microphones, insert leads, RCA and Y-split patch cables, and the two halves can be separated at any point, so a single line fits any jack, XLR or RCA connector. Each pair uses 0.22 mm² (AWG 24) oxygen-free copper conductors with foam PE insulation and a copper spiral screen with 95 % coverage, and the 110 Ω impedance makes it suitable for AES/EBU digital audio and DMX as well as analogue signals. Sommer quotes 70 pF conductor-to-conductor capacitance per metre, 92.5 Ω/km conductor resistance, a -25 to +80 °C temperature range, 53.6 g per metre and CPR class Fca. It suits studios, stage and installation work where tidy stereo runs are needed.

R79.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Construction

  • Pairs: 2 x 2 x 0.22 mm² (AWG 24), OFC
  • Screening: Copper spiral per pair, 95 %
  • Jacket: S-PVC, black, twin 9.2 x 4.5 mm
  • Weight: 53.6 g/m

Electrical

  • Impedance: 110 Ω
  • Capacitance cond./cond.: 70 pF/m
  • Conductor resistance: 92.5 Ω/km
  • Uses: Analogue audio, AES/EBU, DMX

Environmental

  • Temperature: -25 to +80 °C
  • CPR Euroclass: Fca
  • EAN: 4049371000512
