Stage Plus Rack Power 2U - 32A Input - Powercon x 6 Output - Indicators - 3Phase - 2U

Stage Plus Rack Power 2U - 32A Input - Powercon x 6 Output - Indicators - 3Phase - 2U
More Info

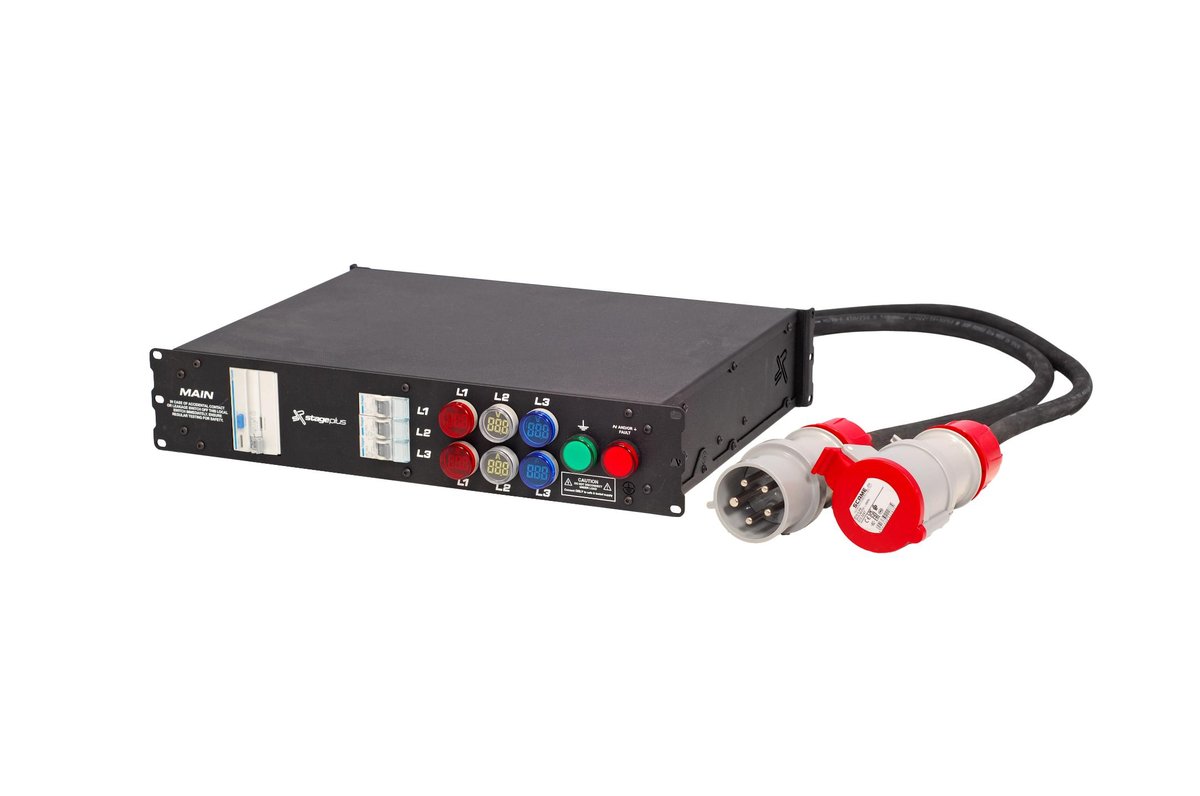

The Stage Plus Rack Power 2U Type 1 (SP-POW-RP-32-2U-01) is a 19-inch, two-rack-unit three-phase power distribution unit from South African manufacturer Stage Plus, used in touring racks, sound and lighting control positions, broadcast trucks and installed AV racks. It takes a 32A three-phase supply through a male CEE Form inline tail and passes it through to a female CEE Form inline tail so further distros can be linked. Power is distributed to six 16A powerCON outputs on the rear panel, while the protection and indication sit on the front for easy access: a 63A four-pole 30 mA earth-leakage device, three 16A single-pole MCBs, voltage and amperage indication per phase, and an active earth and neutral fault monitor that warns of wiring problems before equipment is powered. The modular Stage Plus rack power range is available in other connector options on request. Installation and connection to the three-phase supply must be carried out by a qualified electrician; loads should be balanced across the phases.

R11,787.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Input

  • Supply: 32A three-phase with passthrough
  • Connectors: 32A 3-phase male and female inline CEE Form tails

Output

  • Outlets: 6x 16A powerCON (rear)

Protection & indication

  • Earth leakage: 1x 63A 4-pole, 30 mA
  • MCBs: 3x 16A 1-pole
  • Metering: Voltage and amperage per phase
  • Fault monitor: Active earth and neutral fault monitor

Physical

  • Format: 19-inch rack, 2U
