Apple Studio Display Xdr - Nano-Texture Glass - VESA Mount Adapter (Stand Not Included)
The Studio Display XDR is Apple's professional-grade external monitor, built on the same Liquid Retina XDR mini-LED technology as the Pro Display XDR line but sold as an integrated, all-in-one Studio Display product. This is the VESA Mount Adapter configuration, and it is genuinely different from the two stand-equipped listings in this catalog: it does NOT include Apple's adjustable stand at all -- in its place it ships with a 100x100mm VESA mount plate, so the display attaches directly to a customer-supplied VESA-compatible monitor arm, wall mount, or third-party stand rather than Apple's own tilt/height mechanism. It carries the nano-texture glass option -- an etched-glass anti-glare coating engineered to scatter reflections while preserving contrast and color accuracy.
Panel specs are identical to the stand-equipped models: a 27-inch 5K Retina XDR display (5120x2880, 218ppi) with a 2304-zone mini-LED backlight delivering up to 1000 nits sustained SDR brightness and 2000 nits peak HDR, 120Hz refresh with Adaptive Sync, and 1 billion colors across P3 and Adobe RGB. The same 12MP Center Stage camera with Desk View, six-speaker system with force-cancelling woofers and Spatial Audio/Dolby Atmos, and studio-quality three-mic array are built in, along with two Thunderbolt 5 (120Gb/s) and two USB-C (10Gb/s) ports. This configuration suits a customer who already owns a monitor arm or is mounting the display to a wall or desk-clamp system rather than using a freestanding stand -- the VESA plate supports both landscape and portrait orientation. With the mount plate fitted rather than the stand, the unit measures 24.5" wide by 14.3" tall by 1.3" deep and weighs 13.9lb. Ships with a 1m Thunderbolt 5 Pro cable; no stand is included, so a compatible mount or arm must be purchased separately if one isn't already on hand.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Display
- Type: 27-inch 5K Retina XDR, mini-LED, 2304 dimming zones
- Resolution: 5120 x 2880 (218 ppi)
- Brightness: 1000 nits sustained (SDR), 2000 nits peak (HDR)
- Refresh Rate: 120Hz with Adaptive Sync
- Color: 1 billion colors, P3 + Adobe RGB wide color gamut
- Glass: Nano-texture glass (anti-glare etched finish)
Camera & Audio
- Camera: 12MP Center Stage with Desk View
- Speakers: Six-speaker system, force-cancelling woofers, Spatial Audio/Dolby Atmos
- Microphones: Studio-quality three-mic array
Stand & Mounting

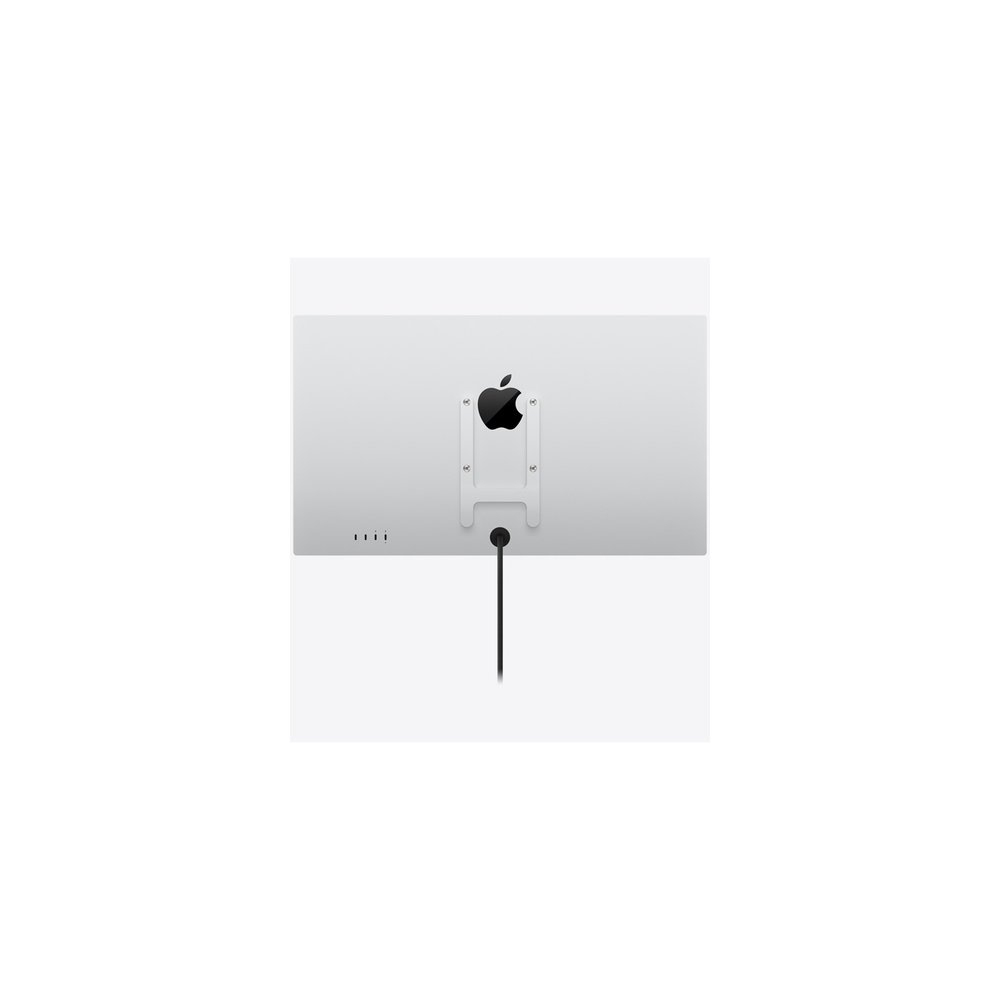

- Stand: NOT included -- VESA Mount Adapter (100 x 100mm) fitted instead
- Orientation Support: Landscape or portrait
- Dimensions (with mount): 24.5"W x 14.3"H x 1.3"D
- Weight: 13.9lb
Connectivity
- Ports: 2x Thunderbolt 5 (120Gb/s), 2x USB-C (10Gb/s)
- In the Box: Studio Display XDR with VESA mount plate fitted, Thunderbolt 5 Pro cable (1m). No stand included.
