Garmin TIX1604-SUPRA Interchangeable Thru Hull Lt, LS, (60-0557)

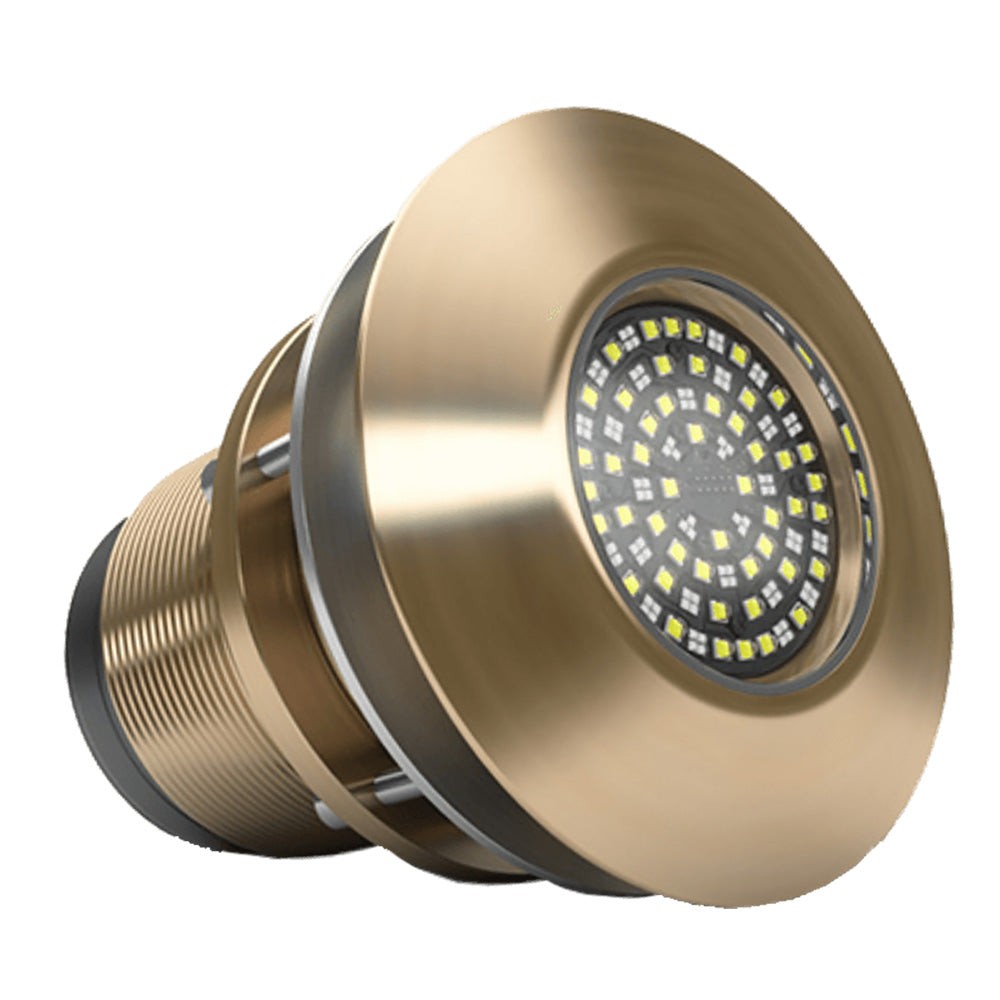

The Lumishore SUPRA TIX1604, part number 60-0557, is the interchangeable-cartridge version of the SUPRA1604 fixture directly above this one in the same range -- same 20,000-fixture-lumen, dual-color (blue/white) output class, but built with the LED array and driver combined inside a single serviceable housing rather than a separate external driver box. "Interchangeable" here means the working light module can be pulled and swapped from inside the hull for servicing or replacement, without hauling the boat out to access an externally-fitted fixture.
It shares the SUPRA range's wide 110-degree beam and blue/white color switching, fading, brightness adjustment and two-speed strobe, but runs across a slightly broader voltage window than the THX1604 (20-31V DC) and draws about 6.5A. The housing is marine bronze with a borosilicate glass lens, rated IP68, and Garmin/Lumishore specifies the same 50,000+ hour typical LED life and 3-year warranty as the rest of the SUPRA/EOS lighting range. Like the THX1604, it mounts through the transom, side or bottom of the hull, and is controlled via the SUPRA i-Connect Hub and switch or directly from a compatible Garmin MFD or optional Lumishore display -- the practical difference from the THX1604 is purely installation and long-term serviceability, not light output or color capability.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Lighting
- Product: Lumishore SUPRA TIX1604 Interchangeable Thru-Hull Light
- Part number: 60-0557
- Driver type: Integrated driver, interchangeable/serviceable from inside the hull (TIX)
- Color capability: Dual-color, Blue & White
- Light output: 20,000 fixture lumens
- Beam angle: 110°
- Voltage: 20-31V DC
- Current draw: 6.5 A
- Housing: Marine bronze body, borosilicate glass lens
- Ingress protection: IP68
- LED life: 50,000+ hours typical
- Warranty: 3 years
Physical/Mounting
- Mount locations: Transom, side, or bottom
Connectivity
- Control: SUPRA i-Connect Hub & switch, or a compatible Garmin MFD / optional Lumishore display
