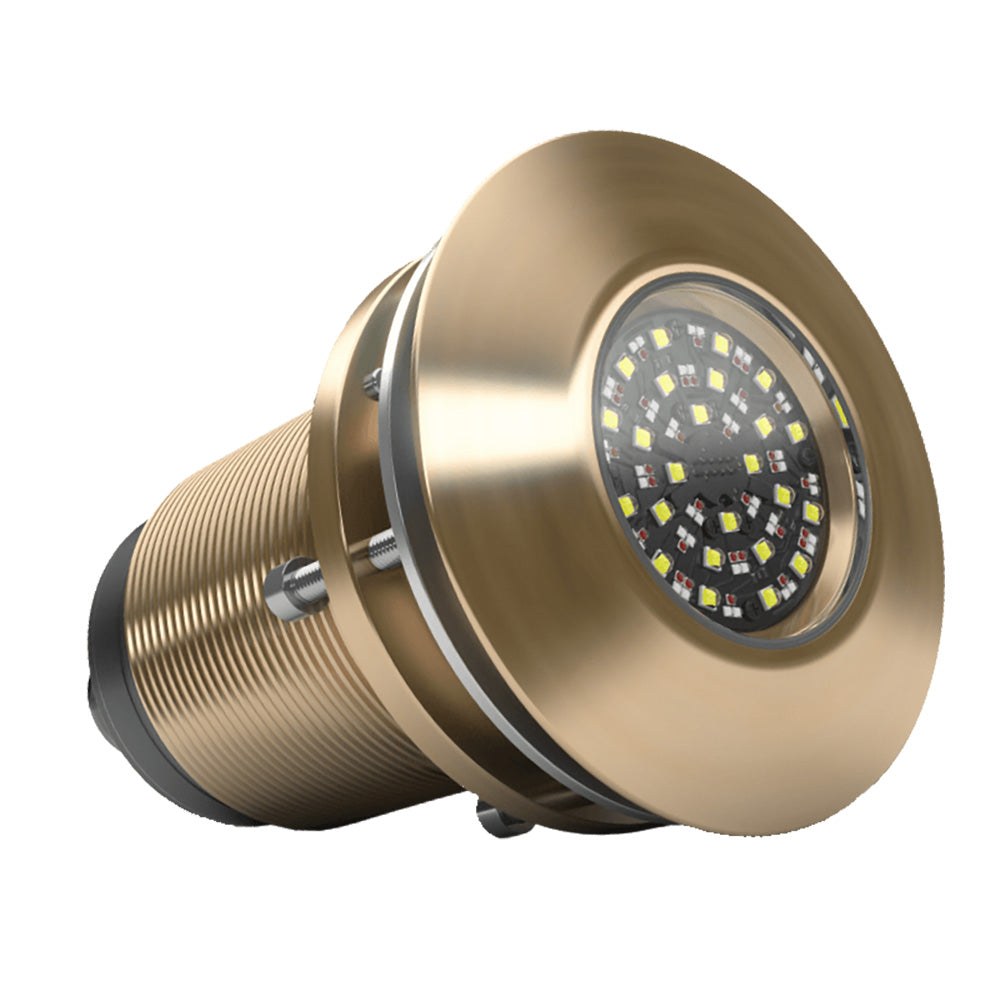

Garmin TIX804-EOS Interchangeable Thru Hull Light, LS, (60-0561)
The Lumishore EOS TIX804, part number 60-0561, is the interchangeable-cartridge version of Garmin's smaller EOS-series underwater thru-hull light, offering full RGBW color-changing capability rather than the fixed dual-color (blue/white) output of the SUPRA range above it. As a "TIX" model, the LED array and driver are combined into one serviceable housing that can be pulled and swapped from inside the hull, rather than needing a separate driver box mounted elsewhere in the boat, which is what the equivalent "THX804" fixture in this same EOS family uses instead.
Total output is rated at 27,000 lumens, with 12,000 verified fixture lumens in white, delivered through a 110-degree beam. The full-color array is built from 24 x 10W white LEDs, 24 x 3W green LEDs, 24 x 3W blue LEDs and 32 x 3W red LEDs (Garmin/Lumishore's HICOB array), giving it genuine RGBW control rather than blue/white switching alone -- full color cycles, sweeps and programmable lighting scenes are possible when controlled from a compatible MFD or the optional Lumishore display, not just an on/off color toggle. It runs on 12V or 24V systems, housed in a marine bronze body with a borosilicate glass lens, rated for 50,000+ hours of typical LED life and backed by a 3-year warranty. Like the rest of this range it mounts through the transom, side or bottom of the hull.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Lighting
- Product: Lumishore EOS TIX804 Interchangeable Thru-Hull Light
- Part number: 60-0561
- Driver type: Integrated driver, interchangeable/serviceable from inside the hull (TIX)
- Color capability: Full RGBW color change
- Light output: 27,000 total lumens / 12,000 fixture lumens (white)
- Beam angle: 110°
- Voltage: 12V / 24V
- LED array: 24x10W white, 24x3W green, 24x3W blue, 32x3W red (HICOB array)
- LED life: 50,000+ hours typical
- Warranty: 3 years
Physical/Mounting
- Housing: Marine bronze body, borosilicate glass lens
- Mount locations: Transom, side, or bottom
Connectivity
- Control: Compatible Garmin MFD or optional Lumishore display -- color cycles, sweeps, and programmable scenes
