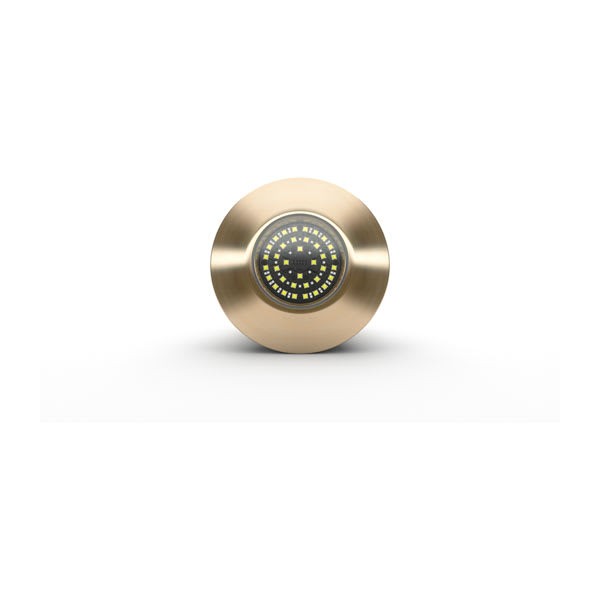

Garmin TIX804-SUPRA Interchangeable Thru Hull Light, LS, (60-0556)
The Garmin/Lumishore TIX804-SUPRA is an interchangeable thru-hull underwater LED light, part number 60-0556, designed for boat underwater lighting — the sort of bright, colour-changing lights seen glowing under a boat's waterline at anchor or dockside. 'Interchangeable' refers to its design allowing the light module itself to be serviced or swapped from inside the hull without hauling the boat out of the water, a genuinely useful feature since underwater lights otherwise typically require a haul-out for any repair. It's built with an internal LED array and integrated driver in a single unit, simplifying installation compared to designs needing a separate external driver box.
Rated output is roughly 13,500 fixture lumens across an ultra-wide 110° beam angle, and the TIX804 is available as a dual-colour (blue and white) unit — combining 36 white LEDs (10W each) and 48 blue LEDs (3W each) for a striking dockside display or a fishing-attracting blue glow. It runs on a 10.5-31V DC supply with a maximum current draw of roughly 8.8A/4.4A at 12V/24V, and is suitable for transom, side or bottom hull mounting. Control comes via Garmin's SUPRA i-Connect Hub and Switch system, or directly from a compatible Garmin MFD/chartplotter, letting the owner change colours and effects from the helm. LED lifespan is rated at 50,000+ hours, backed by a 3-year manufacturer warranty.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Light
- Type: Interchangeable thru-hull LED
- Colour: Dual colour (Blue & White)
- Output: ~13,500 fixture lumens
- Beam angle: 110°
LEDs
- White: 36 x 10W
- Blue: 48 x 3W
Electrical
- Supply voltage: 10.5–31V DC
- Max current draw: ~8.8A (12V) / 4.4A (24V)
Control & Durability
- Control: SUPRA i-Connect Hub/Switch or compatible Garmin MFD
- LED life: 50,000+ hours
- Warranty: 3 years
Part Number
- Model: 60-0556
