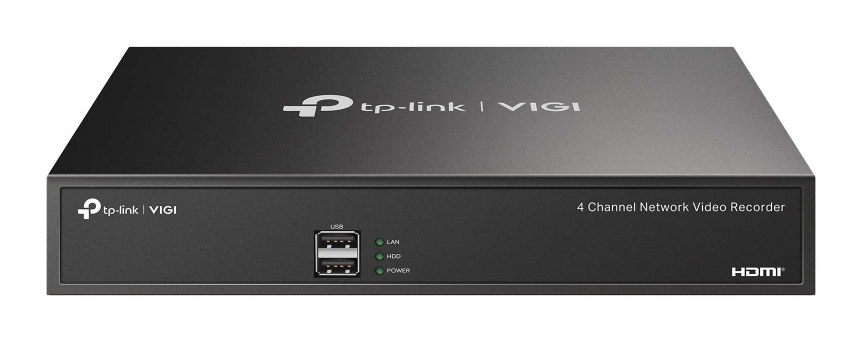

TP-Link VIGI NVR1004H 4-Channel Network Video Recorder

TP-Link VIGI NVR1004H 4-Channel Network Video Recorder
More Info

The TP-Link VIGI NVR1004H is a compact 4-channel network video recorder for a small shop, office or home running up to four VIGI or ONVIF IP cameras. This is the non-PoE model: cameras connect through a separate PoE switch or their own power supplies, and the NVR has a single 10/100 Mbps network port. It records up to 8MP per camera (two channels at 8MP, or all four at 4MP) using H.265+ to stretch storage. One internal SATA bay takes a surveillance hard drive of up to 10 TB (drive not included). HDMI output goes up to 4K, and a VGA output can run at the same time, so you can view live feeds or play back four channels at once on a monitor or TV. It handles motion, line-crossing, intrusion, human and vehicle alarms, and you manage it through the VIGI app, a web browser or VIGI Security Manager. It draws just 4.25 W without a disk. In the box: the NVR, 12 V power adapter, HDD screws, a mouse, rubber feet and installation guide.

R899.00

Online price incl. VAT

Availability: Stock available — ships within 1-3 business days

Recording

  • IP video input: 4 channels
  • Recording resolution: Up to 8MP
  • Decoding capability: 2-ch @ 8MP or 4-ch @ 4MP
  • Compression: H.265+/H.265/H.264+/H.264
  • Incoming / outgoing bandwidth: 80 Mbps / 60 Mbps
  • Synchronous playback: 4 channels

Interfaces

  • Video output: 1x HDMI (up to 3840 x 2160/30 Hz), 1x VGA (up to 1080p), simultaneous
  • Network: 1x RJ45 10/100 Mbps (no PoE ports)
  • USB: 2x USB 2.0
  • Audio: 1x in, 1x out
  • Storage: 1x SATA bay, up to 10 TB HDD (not included)

General

  • Power: 12 V DC / 1.5 A adapter; 4.25 W max without disk
  • Operating temperature: -10 to 55 °C
  • Dimensions: 246.2 x 148.2 x 45 mm
  • Weight: 0.59 kg
  • Management: VIGI app, web browser, VIGI Security Manager; ONVIF
