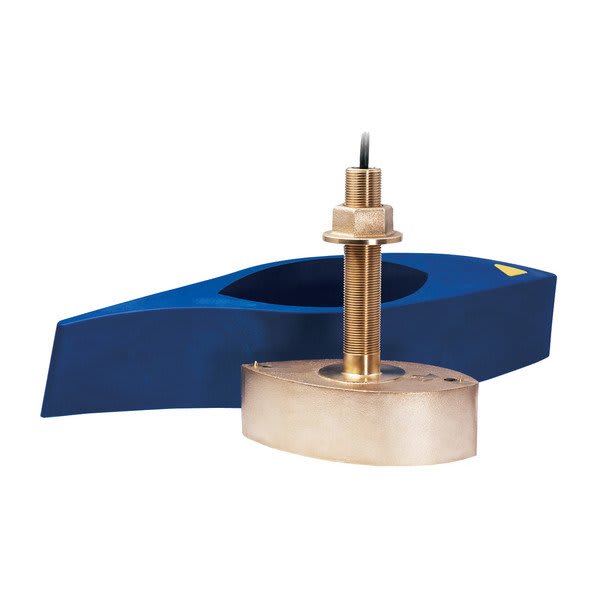

Garmin Xdcr,B275LHW,12pin,1kW,CHIRP,Bronze,Thru hull w/Fairing
This is a Garmin/Airmar B275LHW thru-hull transducer — a bronze, 12-pin CHIRP-ready sonar transducer designed to be permanently mounted through the hull of a fibreglass or wood boat of roughly 8 metres (25 feet) or larger. It's supplied with a fairing block, which angles the transducer face to compensate for a deadrise hull and materially improves signal quality and reduces cavitation noise at higher boat speeds — the 'w/ Fairing' in this listing's name confirms this exact kit configuration rather than the bare transducer alone.
It delivers 1kW of CHIRP sonar power across low (42-65kHz) and high (150-250kHz) frequency bands with a 25-degree beam angle, giving strong target and bottom-structure separation for serious offshore and inshore fishing use, and it includes a built-in high-sensitivity water-temperature sensor for real-time surface temp readings on a paired chartplotter. Its 12-pin connector is designed to work directly with Garmin's GPSMAP 7400/7600 series MFDs and GSD 25/26 sonar modules (and compatible xsv-series units with the matching sonar module). Rated to a maximum depth of roughly 3,000 feet with a 12-metre cable run from the hull to the helm electronics, this transducer is intended for anglers who want dual-frequency CHIRP performance without the compromises of a transom-mount or in-hull unit — the bronze housing resists corrosion in saltwater use over the long term.
Online price incl. VAT
Availability: Stock available — ships within 1-3 business days
Sonar
- Power: 1 kW CHIRP
- Frequencies: Low 42-65kHz, High 150-250kHz
- Beam Angle: 25°
Mounting
- Mount Type: Thru-hull, bronze housing, with fairing block
- Connector: 12-pin (Garmin GPSMAP 7400/7600, GSD 25/26)
- Recommended Boat Length: 8m (25ft) and above, fiberglass or wood hulls
Additional Features
- Temperature Sensor: Built-in, high-sensitivity
- Max Depth: ~3,000 ft
- Cable Length: ~12m
